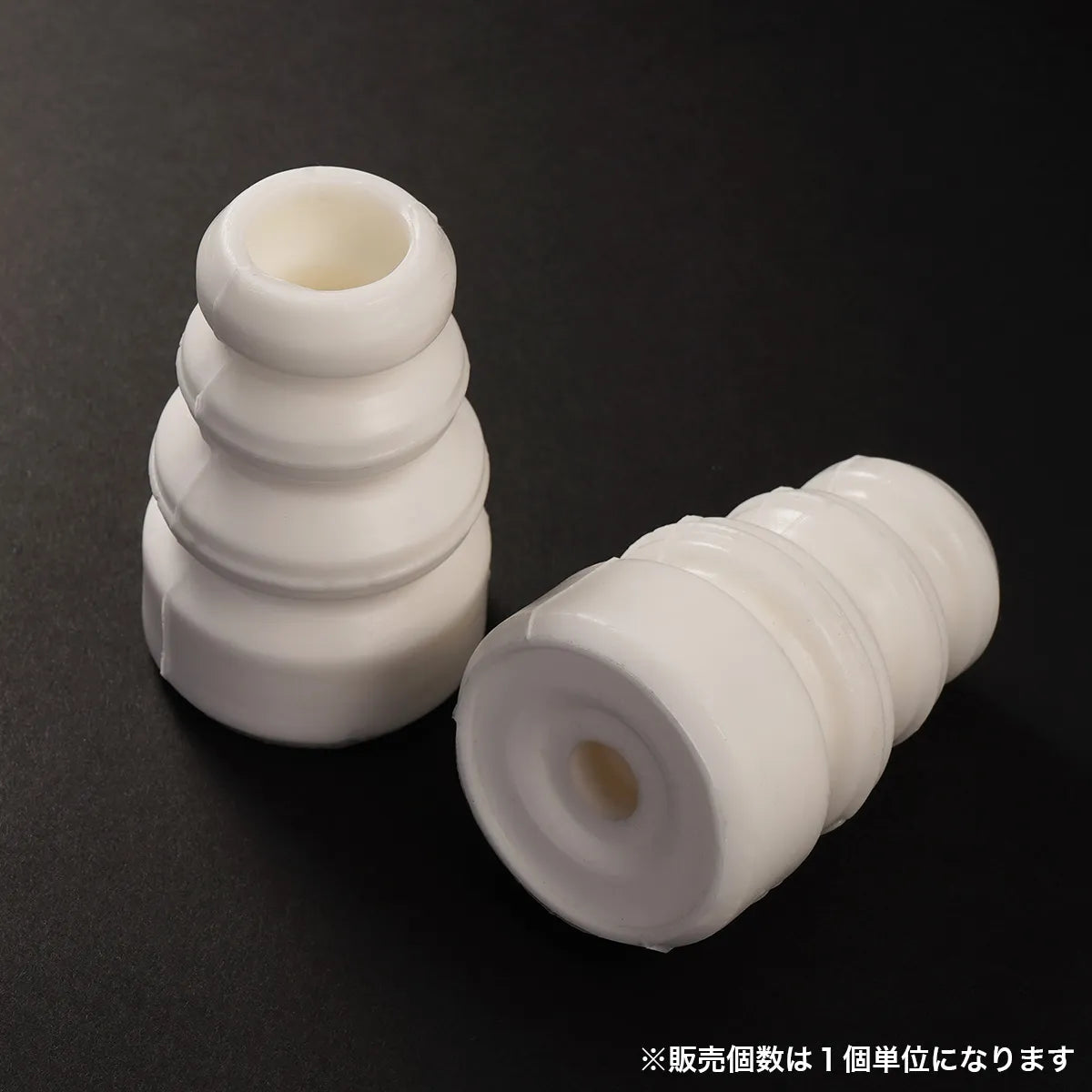

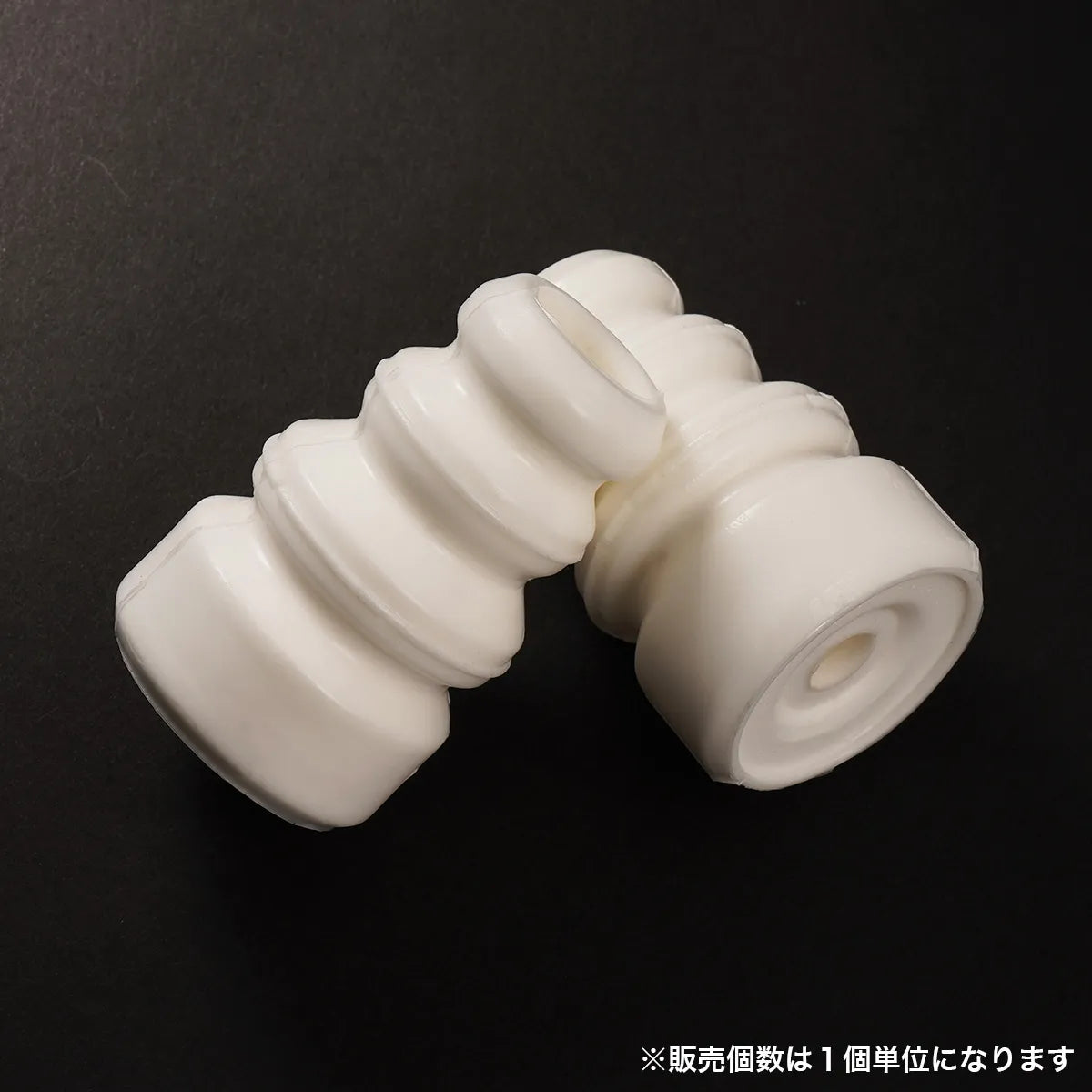

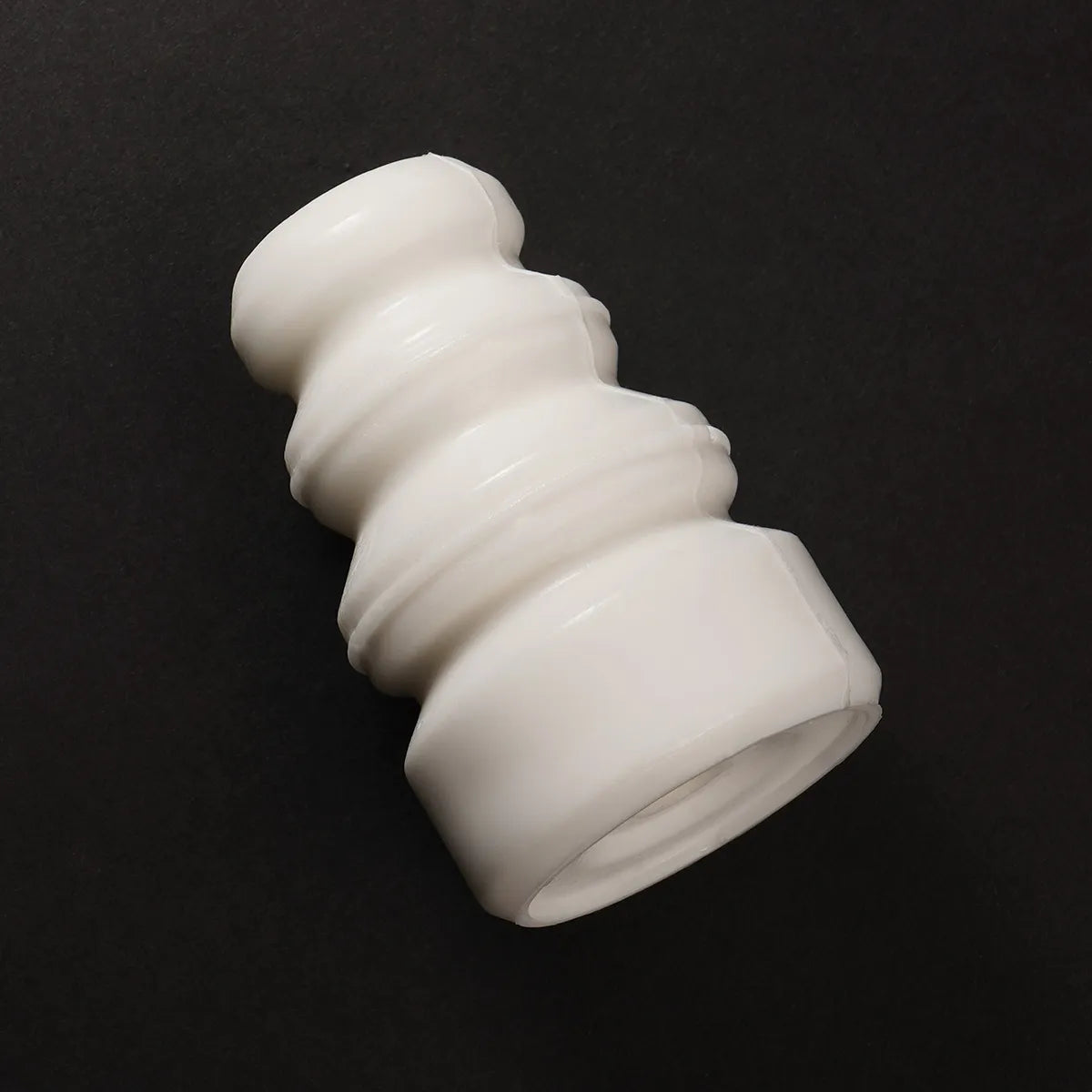

D-MAX Urethane bumper rubber (for rear suspension) soft version
The bump rubber we developed this time has the same shape as the conventional product, but the urethane hardness has been softened. We developed this in order to obtain different bump touch feelings depending on the driver. The bump rubber acts as a second spring. If you hit the bump rubber from a certain stroke position and crush it, it has the same effect as increasing the spring rate. A high rate allows the tire to be crushed more, making it possible to increase grip. tire will be crushed all at once and the tire will be defeated, so our bump rubber has a variable rate structure that generates a slow rate.
Material
Urethane
*The color of the urethane material will change due to the effects of ultraviolet rays, but there is no problem with the quality such as strength.
Specifications
| Total length | 77mm |
|---|---|
| Outer diameter | 50Ф |
| Inner diameter | 12Ф |

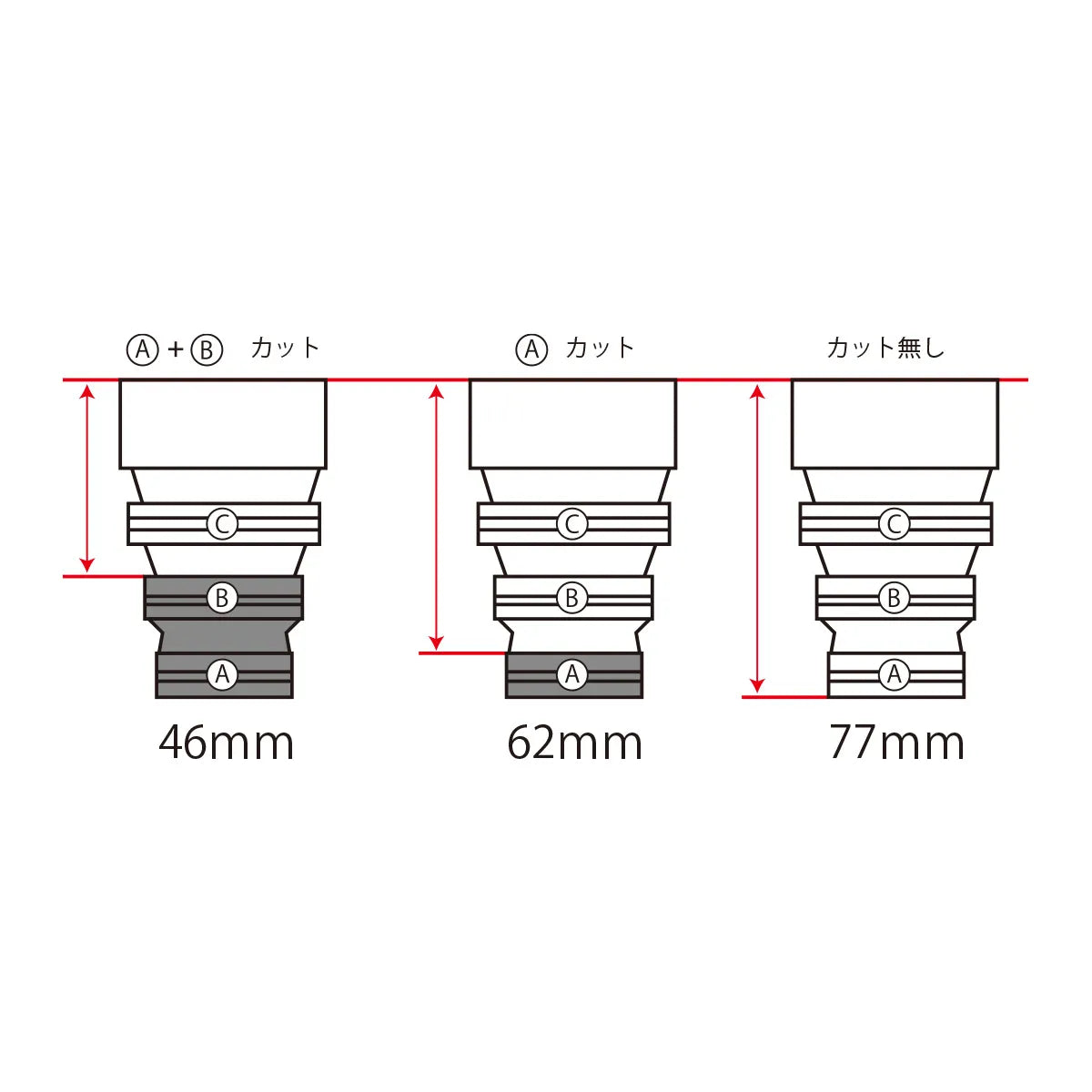

| Adjustable | 3 stages 77mm → 62mm → 46mm → (35mm) D-MAX standard |
| Compatible | Shaft diameter = 12mm |
*Sold in units of 1 unit
*Can be set by cutting
*Please check the illustration for size details.
*Specifications such as logos may vary depending on the production lot.
