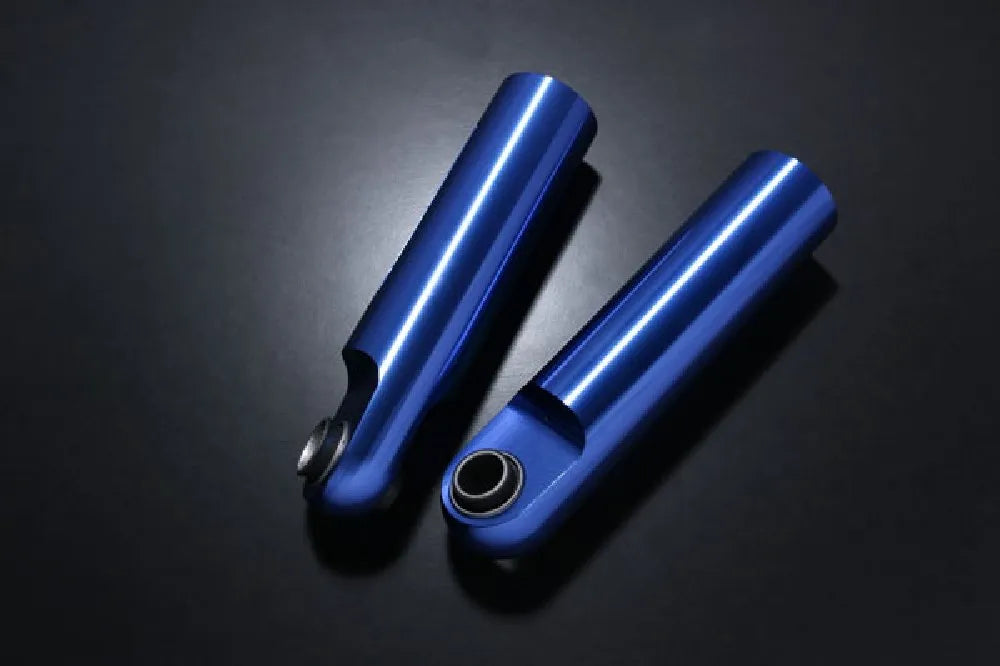

D-MAX Traction Bracket

This item will be discontinued when stock runs out.

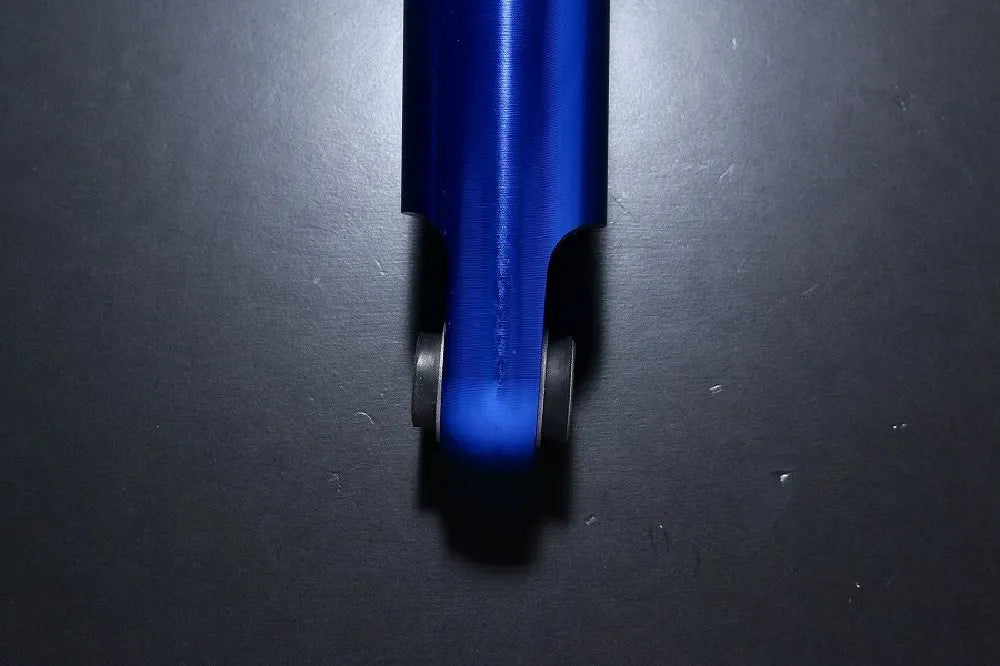

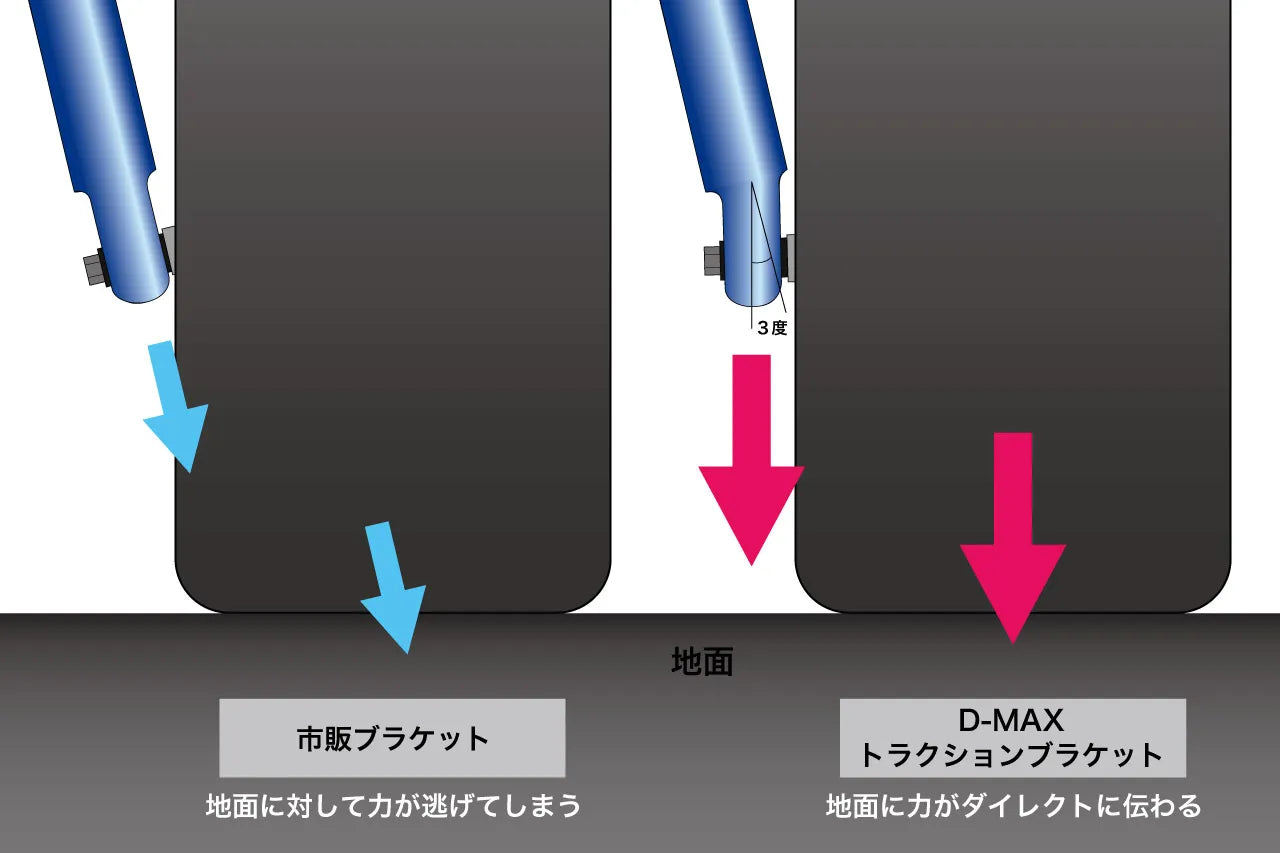

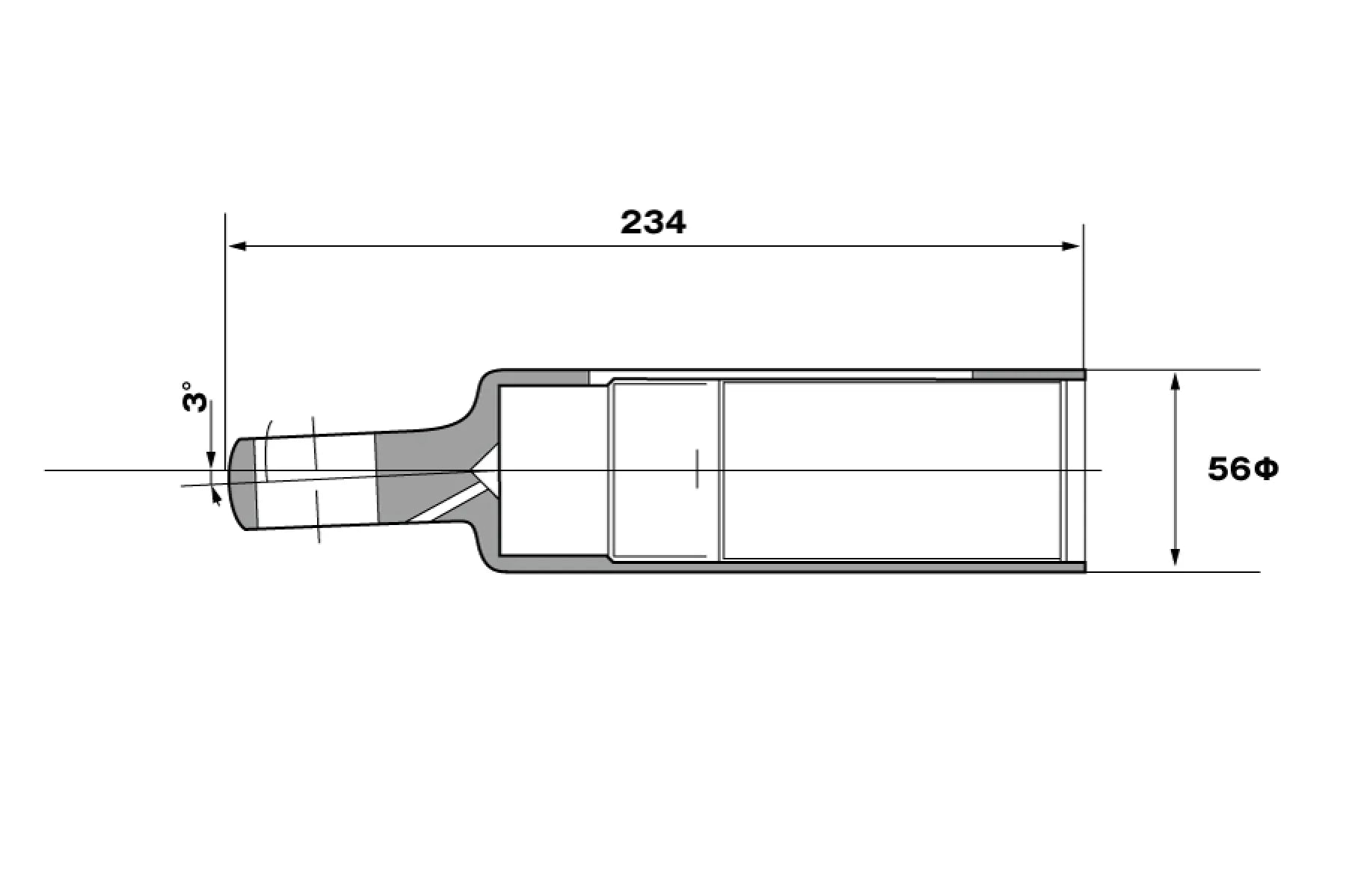

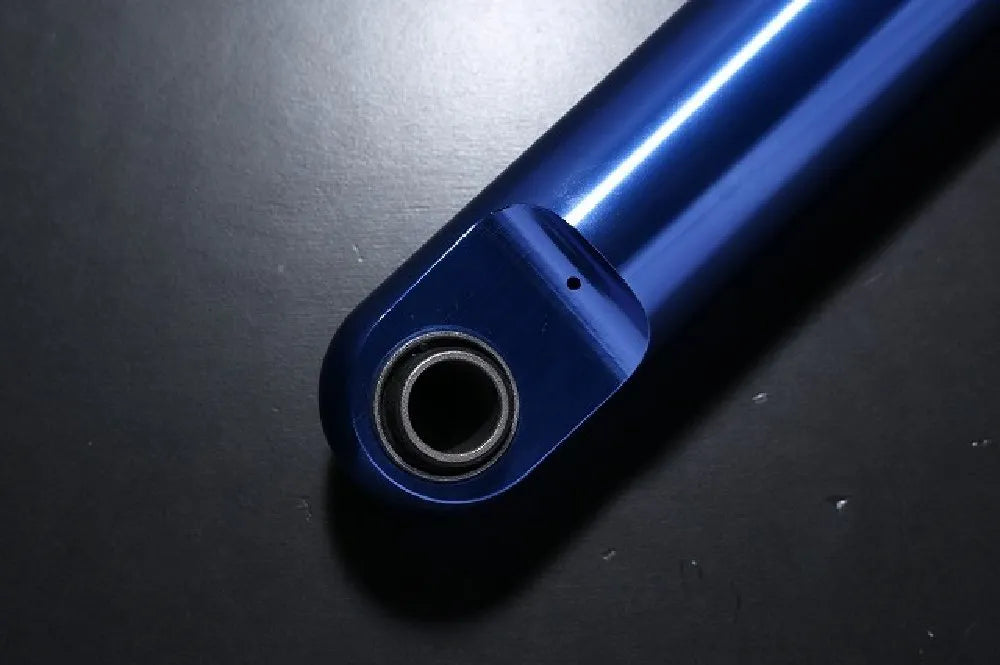

The stock shape is designed to be fitted with a camber. If you look at the mounting part from the rear, you can see that the damper shaft and shell case are attached in a "U" shape, but with this shape, a large resistance occurs at the "U" part when stroking (every time the bump or rebound). This "traction bracket" was developed to significantly reduce that large resistance. The angle setting is set to 3 degrees based on test verification. Positive camber angles of 0.5 to 1.5 degrees and negative camber angles of 0.5 to 1.5 degrees have been tested. Less force is required to rotate the shock when installing or adjusting the overall length. Our support driver can see a significant effect just by installing it. It's easy to install and has excellent effects. This part allows you to see the difference in traction immediately after installing it.

■Compatible models/products

■Specifications

■Material

• This is standard on the DRIFT SPEC Suspension KIT
  . *Not compatible with RACINGSPEC.
  *When installing on other manufacturers' products, be sure to check the bracket Φ.
  Product Code: DMSH3000
  JAN code: 4571433823604
