D-MAX S15 Race Door

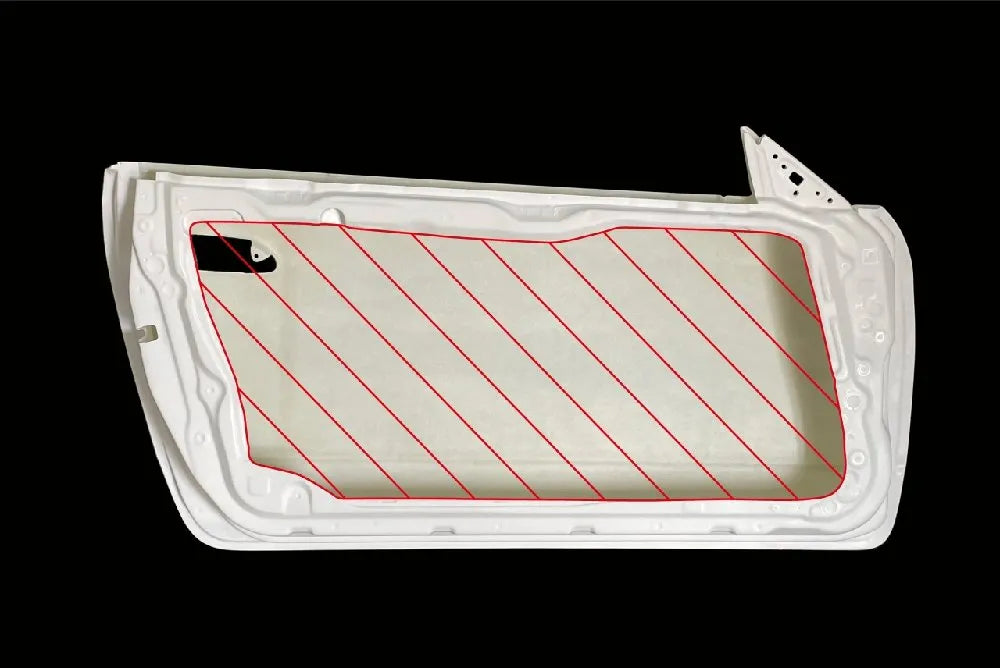

This product is available in two specifications and two materials. The two specifications are standard and race specifications that emphasize light weight. The standard specifications are all manufactured in the same shape as the normal models, so you can use the glass and interior trim without any problems. The race specifications are approximately 600g lighter by omitting the parts that hold the glass regulator and interior trim, as shown in the fourth image. is made to your specifications.

■Product composition

Driver's side	1 sheet
Passenger's side	1 sheet

*Orders are accepted for only one side.

■Specifications

Standard	Genuine parts can be installed.
Race	This specification aims to be even lighter.

*If you install this product, processing is required.

■Material: CARBON

Surface	Carbon fiber reinforced plastic (clear coat finish)
Inside	FRP reinforcement rib (white gel coat)

■Material: FRP

Surface	Fiber reinforced plastic (white gel coat)
Inside	FRP reinforcement rib (white gel coat)

■Weight

Material	Specifications	Product weight (one side)	Original weight (one side)
CARBON	Standard	Approx. 3.4kg	About 17.1Kg
CARBON	For lace	Approx. 2.8Kg	×
FRP	Standard	Approx. 3.7Kg	Approx. 17.1Kg
FRP	For lace	Approx. 3.1Kg	×

*Even with FRP specifications, weight reduction is emphasized, so there is almost no difference with carbon materials, but carbon materials achieve significantly greater strength.

■Compatible models / Notes

S15

Silvia

*Although we check the quality during manufacturing and before shipping, due to the nature of FRP, air bubbles, small scratches, small cracks, etc. may occur, so please use putty to correct them if necessary during the base work. Most damage occurs during transportation. If there is damage during transportation (if debris remains in the box or the box is damaged), please contact the shipping company within 7 days of receiving the product. In the unlikely event that there is a product defect, we will inspect the product, but please note that we cannot accept claims after painting or processing. *Aero parts (FRP products) are different from regular steel products and may require correction before painting.
