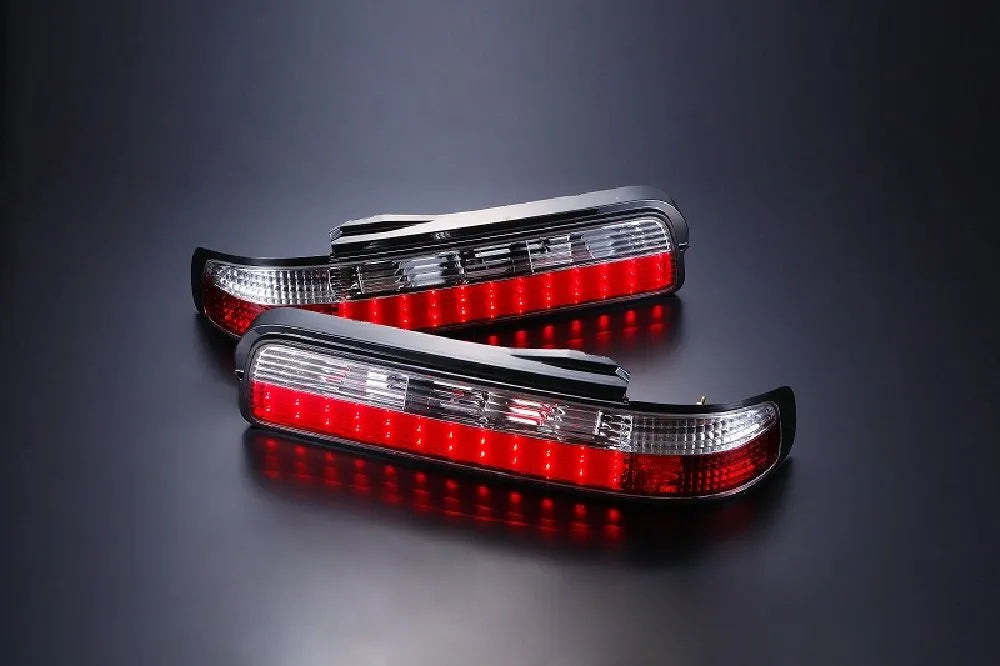

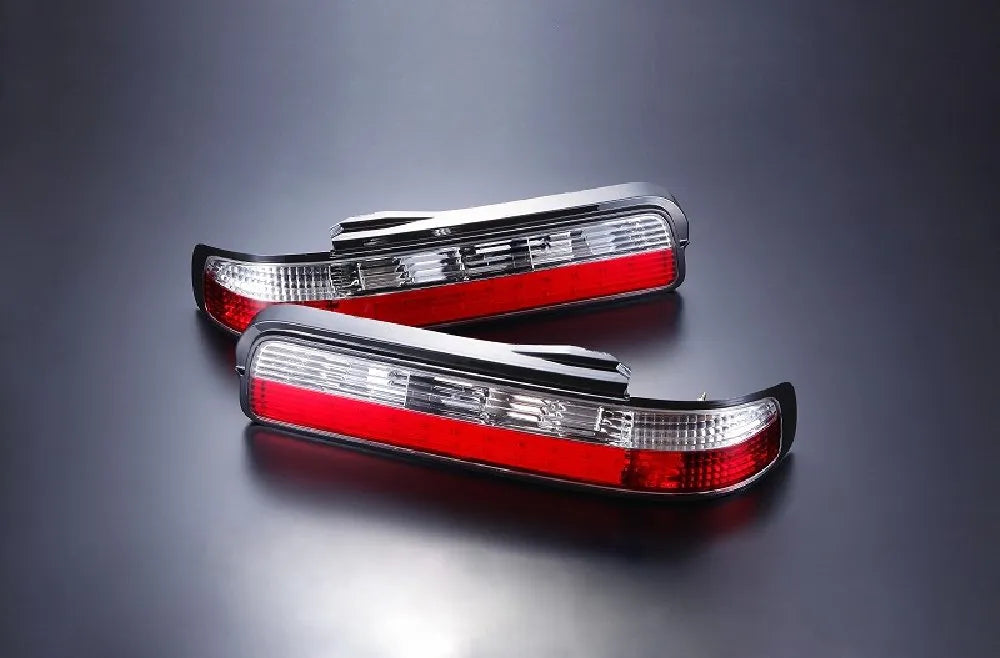

D-MAX S13 LED Crystal Tail SET
■ Compatible vehicle models/models
Sylvia | S13 |
■Material
Made of acrylic resin |
*The lens part is easily scratched, so do not wipe it with a dry cloth.
■Specifications
design | Chrome |
Blinker section | LED lighting type |
Number of LEDs (indicator part) | 8 per side / 16 in total |
Back section | Bulb lighting type |
Back sphere shape | T16 / 12V16W(18W) |
Tail and stop section | LED lighting type |
Number of LEDs (tail section) | 36 on each side / 72 in total |
*When replacing, please follow the Nissan maintenance manual.
*Please use genuine bulbs for turn signals and reverse lights.
*For the safe operation of automobiles, the color and brightness of each light, such as tail lights, are specified in detail by the Road Transport Vehicle Law safety standards.
Never modify the vehicle, such as changing the color or brightness of the lights.
*Most water leaks occur when the gasket between the body and the lamp is not installed correctly or the gasket is deteriorated.
*Please understand the role of the gasket (caulking) before installing.
*Before driving the vehicle, be sure to check that all lights are working properly.
*Once the installation work is completed, be sure to check that all lights are working properly. Please store the genuine lamps that you removed carefully.
*If the lens becomes cloudy, the tail lamp is not sealed to ventilate the air inside. This is to release the heat generated by the lamp and
keep the inside of the lamp in an optimal environment.
*Since the inside of this product is not sealed, if it rains for a long time or the humidity is high, the inside may condense and the lens may become cloudy, but this is not abnormal.
*The fog will disappear if you leave it for a while, but if the fog is bothersome, remove the tail lamp connector on a sunny day and leave it for a while.
*The gasket (caulking) between the body and the lamp is a very important part in preventing water leakage.
If deterioration or damage is confirmed when removing it, be sure to replace it with a new one.
*When installing this product, there may be a gap of several mm between the body and this product, but this is due to the vehicle body and installation error, so it is not abnormal.
