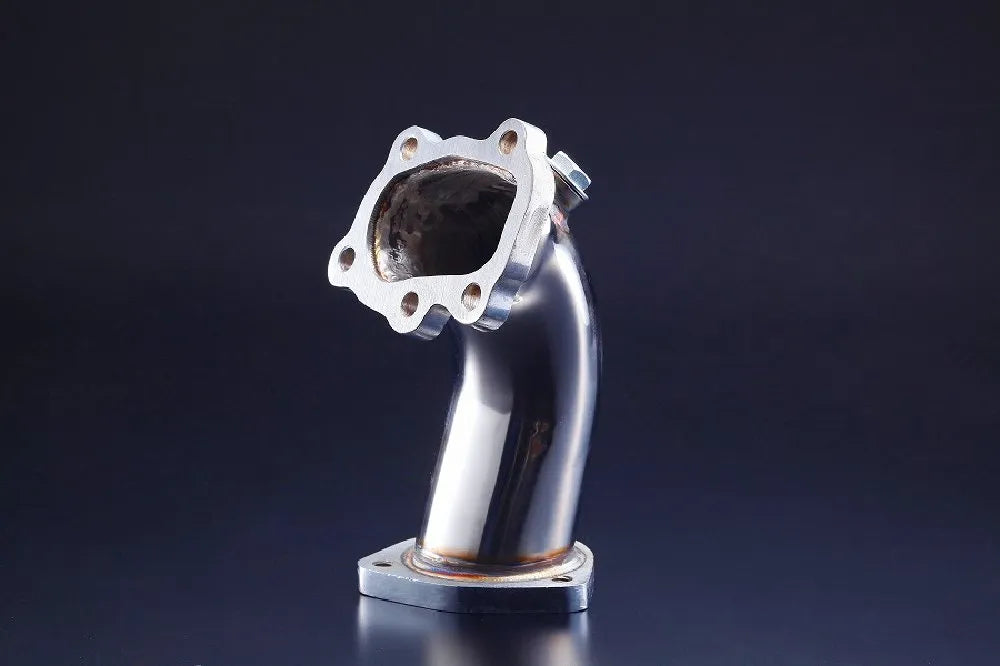

D-MAX Outlet pipe Ver.STD
It is important for the outlet pipe to increase the outlet capacity, lower the secondary exhaust pressure, improve exhaust efficiency, and prevent exhaust interference. Compared to conventional products, the design is deep, ensuring an efficient flow of exhaust from the turbine to the front pipe. By using it in combination with the front pipe, the design ensures that the turbine's original performance can be fully realized.
■Material
| Stainless steel SUS304 |

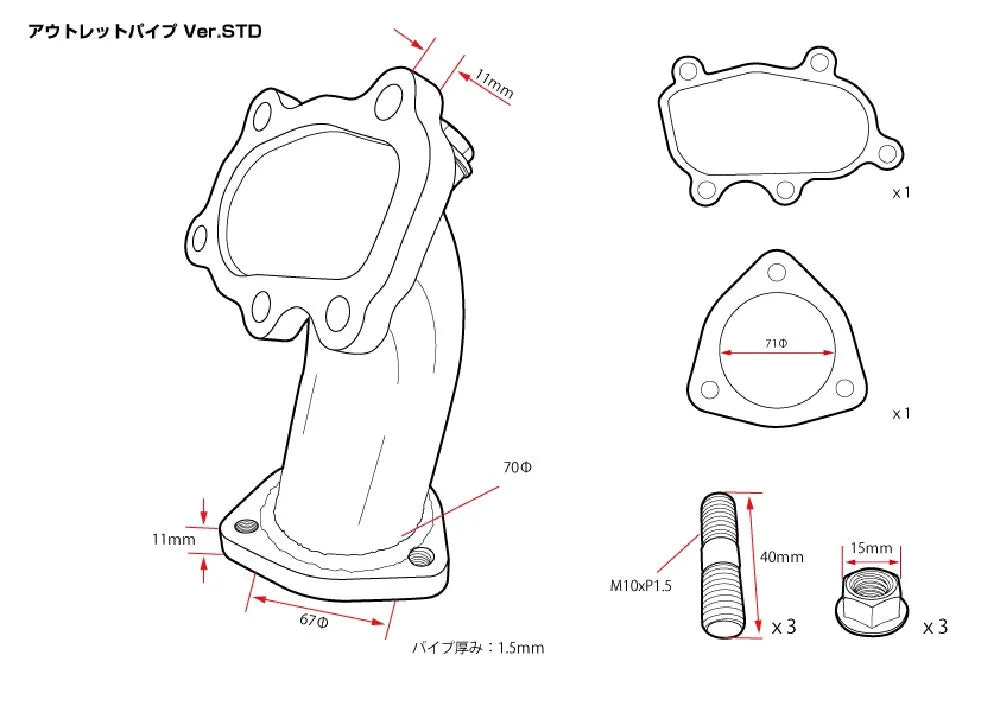

■Specifications
| Pipe Thickness | 1.5mm |
| Outlet diameter | 73Ф ※GTR＝75Ф |
| Outlet inner diameter | 67Ф ※GTR＝70Ф |

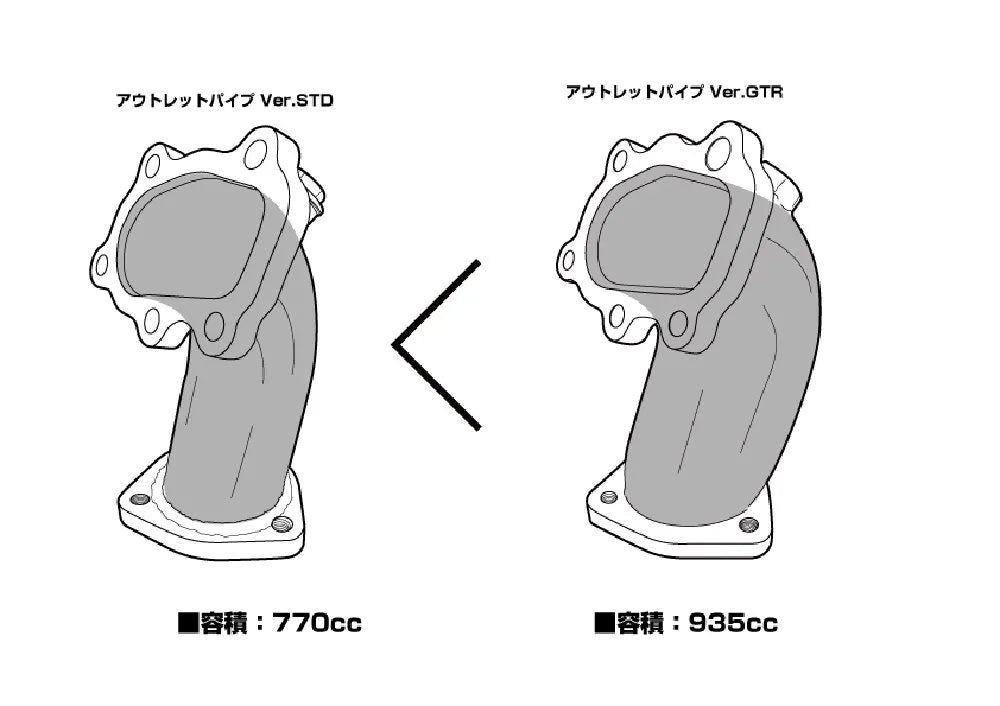

| volume | 770cc ※GTR＝935cc |
| Stud bolt length | 40mm |
| Thread Pitch | 1.5mm |
■Accessories
| Outlet side | Heat-resistant paper gasket |
| Front pipe side | Heat-resistant paper gasket |
| Stud bolt | 3 pieces |
| nut | 3 pieces |
*
If you change the turbine and install it on a red head vehicle, an O2 sensor conversion adapter is required.
| CS14/S14/S15 |
*Shipping charges apply for each item.
Product code: DMEN013AT1 to DMEN117AT1
JAN code: 4571433800209 to 4571433800216

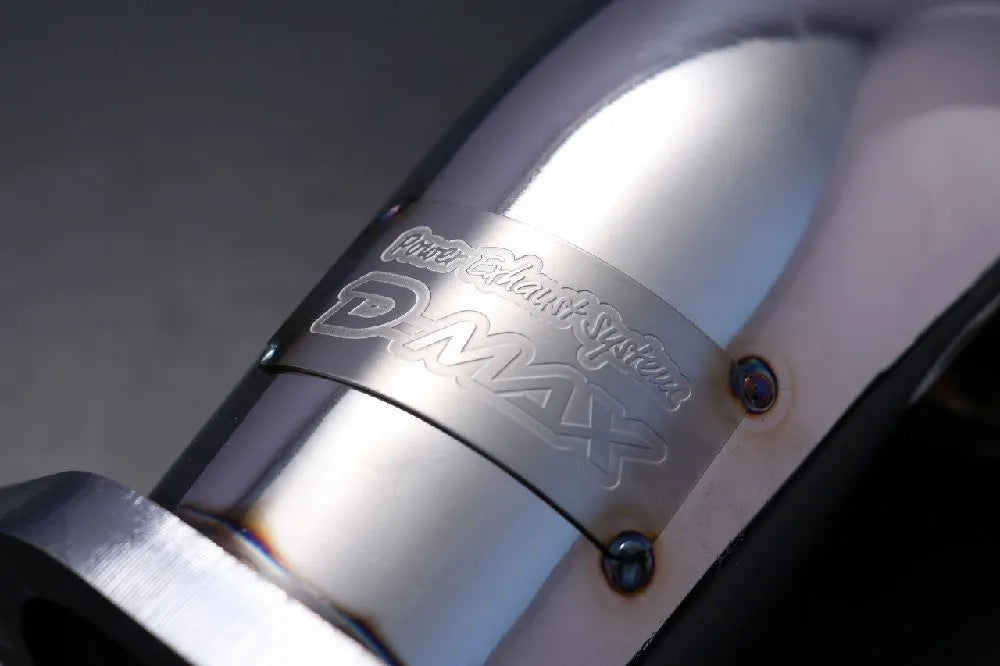

Some images do not show the plate attached, but it is attached to the actual product.
