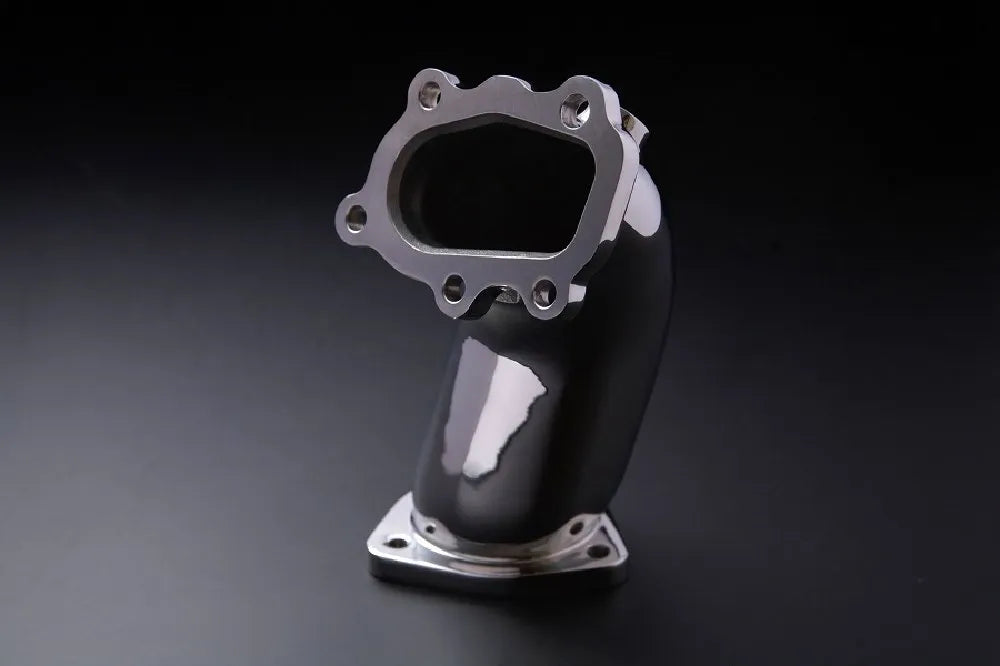

D-MAX Outlet Pipe Ver.GTR
This product was discontinued on June 20, 2023, but will be revived in limited quantities on March 1, 2024!

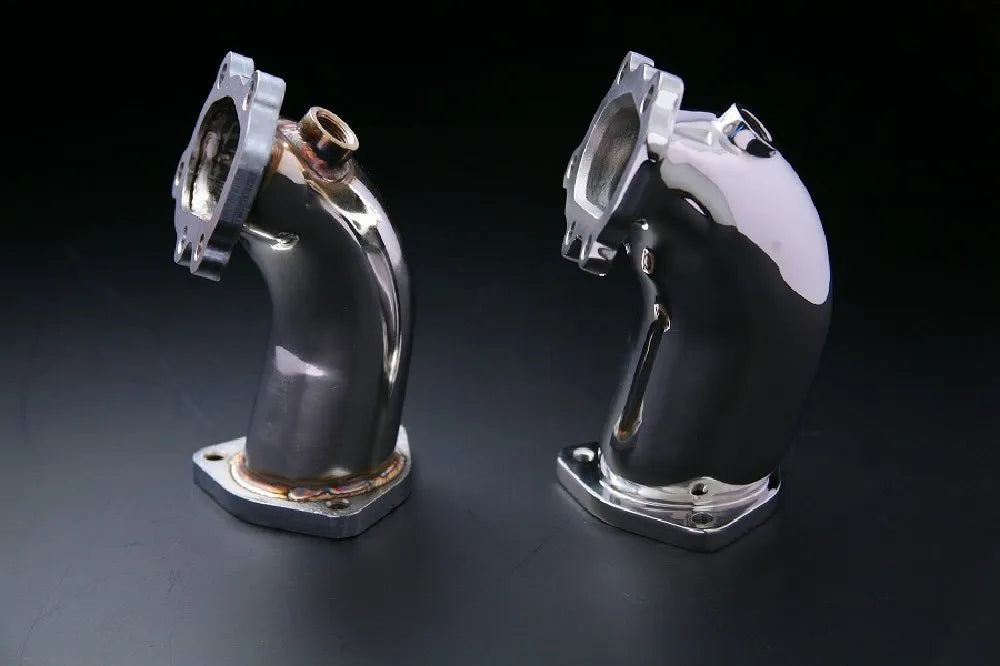

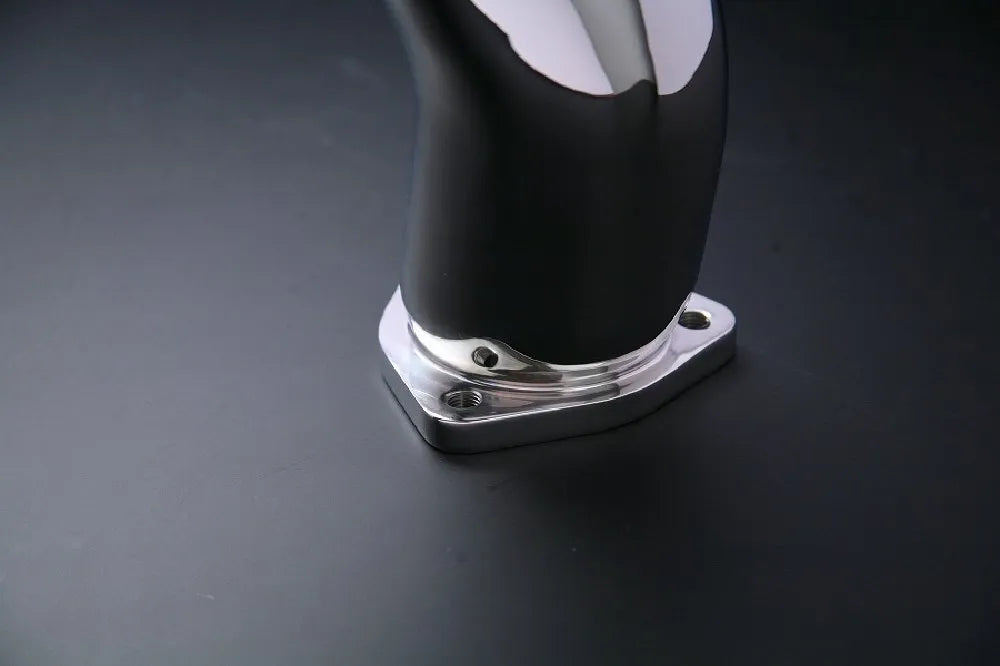

It is important for the outlet pipe to increase the outlet capacity, lower the secondary exhaust pressure, improve exhaust efficiency, and prevent exhaust interference. Compared to conventional products, the design is deeper to ensure that the exhaust from the turbine flows efficiently to the front pipe. The flange is made using the lost wax method, so it is not only durable but also extremely rigid. It is designed to be used in combination with the front pipe to ensure that the turbine's original performance is fully realized.
■Materials
Stainless steel SUS304 |
Lost wax casting |

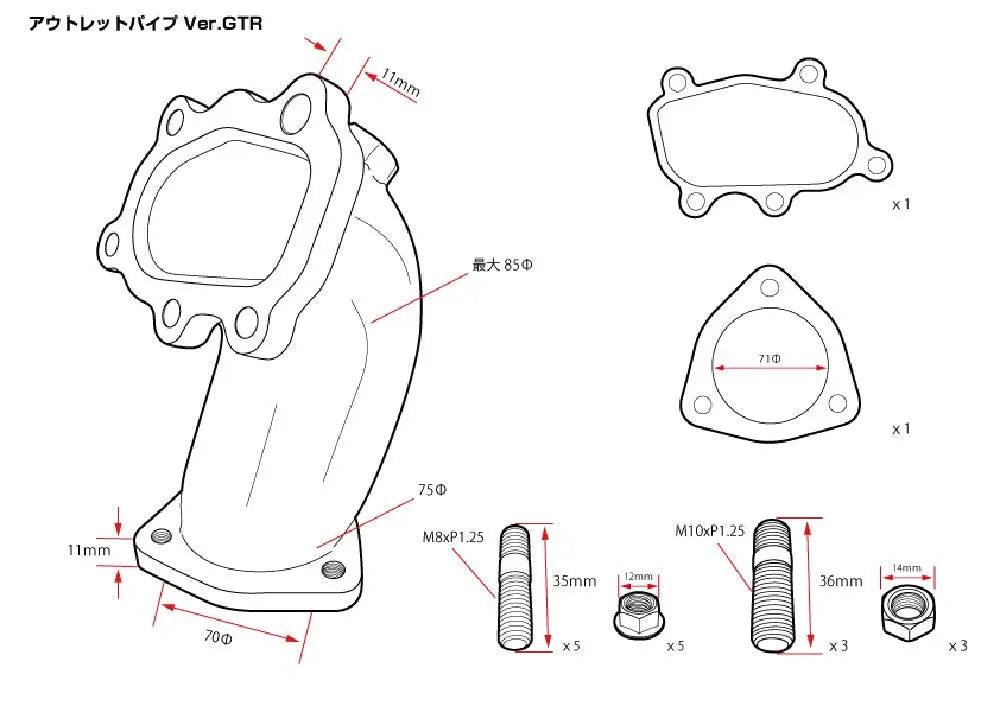

■ Specifications
Pipe Thickness | 1.5mm |
Outlet diameter | 75Ф ※STD=73Ф |
Outlet inner diameter | 70Ф ※STD=67Ф |

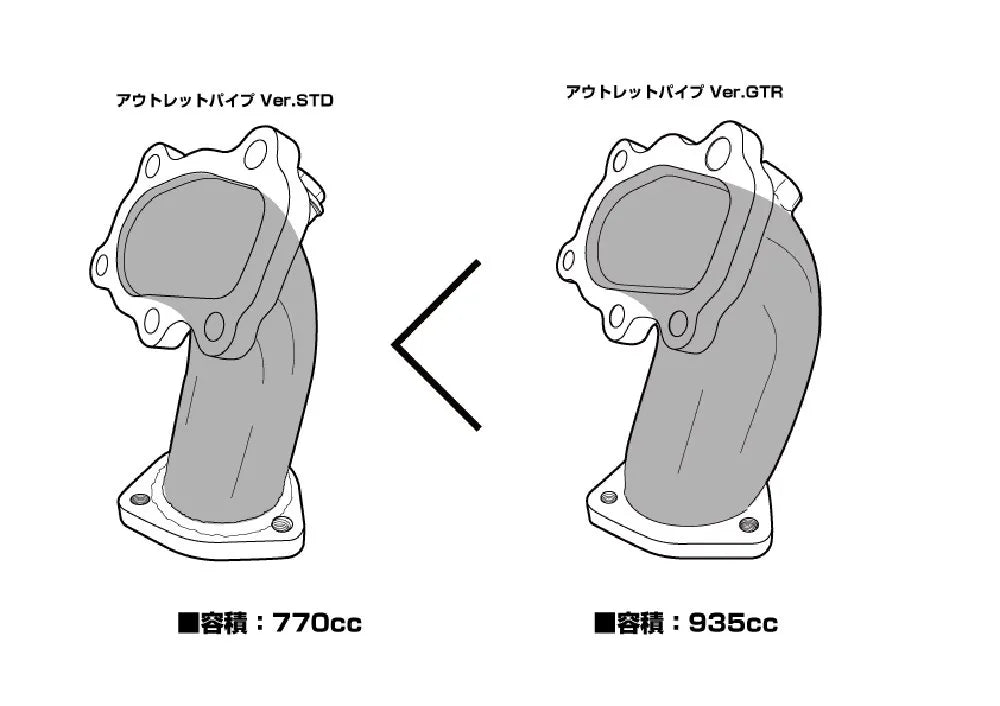

volume | 935cc ※STD=770cc |
Stud bolt length |
M8 P1.25 35mm M10 P1.25 36mm |
■Accessories
Turbine side | Metal Gasket |
Front pipe side | Metal Gasket |
Stud bolt | 3 pieces |
nut | 3 pieces |
■ Compatible Models
S14/S15 |
-
If you are changing the turbine and installing it on a red head vehicle, an O2 sensor conversion adapter is required.
*Shipping charges apply for each item.Product Code: DMEN116BT1JAN code: 4571433800193
