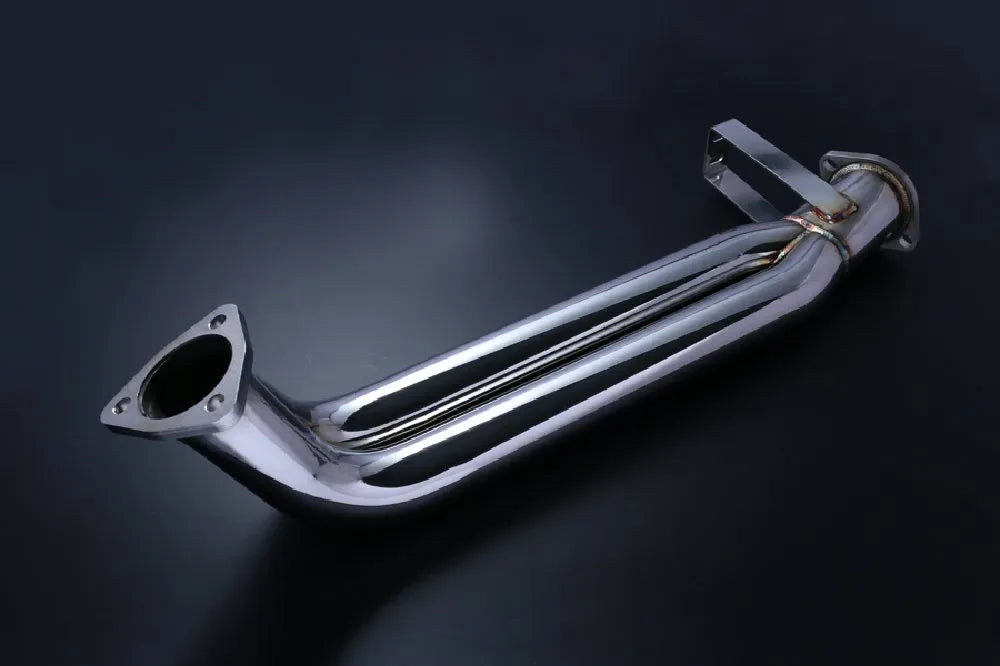

D-MAX Dual front pipe
By using 60mm dual pipes, the pipe position can be raised, and the shape can greatly reduce interference, such as catching the flanges even on bad road conditions. The exhaust efficiency is improved by flowing from the outlet 73mm to the dual 60mm to 80mm, and the extension from low to medium speed range is improved, realizing the best range for drifting.
■ Specifications
| Main Pipe Diameter | 60ФDual |
| Front pipe side | 70Ф |
| Catalyst side | 80Ф |
| Pipe Material | Stainless steel SUS304 |
| Pipe Thickness | 1.5mm |
| Flange Thickness | 10mm |
■ Accessories
| Stay | 1 piece |
| Stay bolt | 4 pieces |
| Stay Nut | 4 pieces |
| bolt | 2 pieces |
| Spring washer | 2 sheets |
| nut | 2 pieces |
*Accessories may change depending on the production lot.
■ Compatible engine/ model
| Model | RPS13/PS13/S14/S15 |
| engine | SR20DET |
*For S13 genuine turbine vehicles, the turbine is small, so it leans towards the turbine side, and this product may interfere with the floor.
*For vehicles with aftermarket engine mounts, this product may interfere with the floor.
In the above cases, adjustments using adapters or processing of the floor may be required.
If it is close to the floor, it will be necessary to wrap a bandage around it to protect against heat.

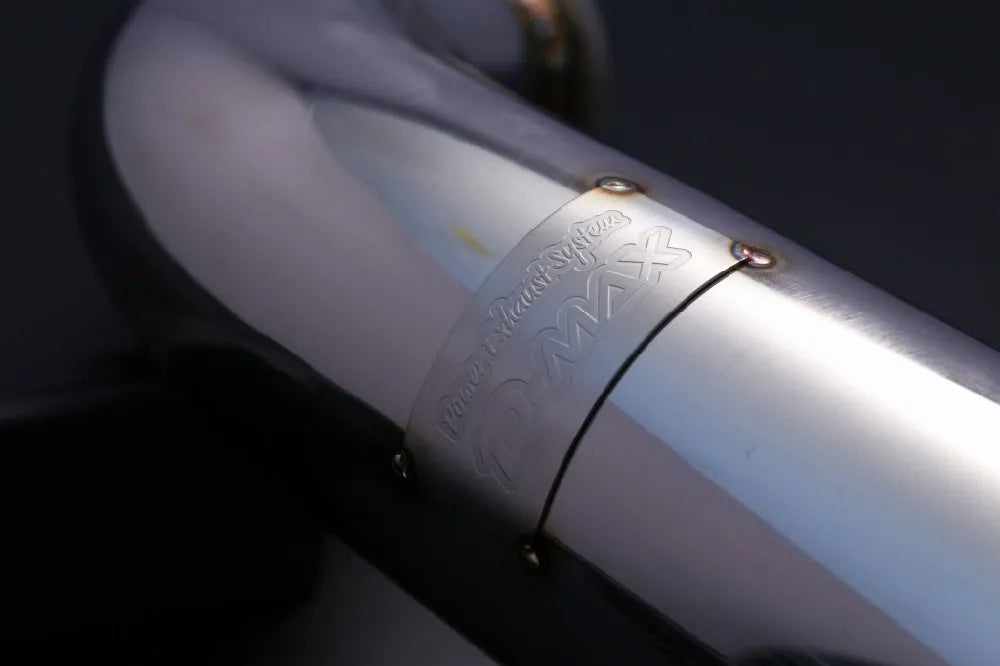

Some images do not show the plate attached, but the actual product does. *This is a part for competition use only.
