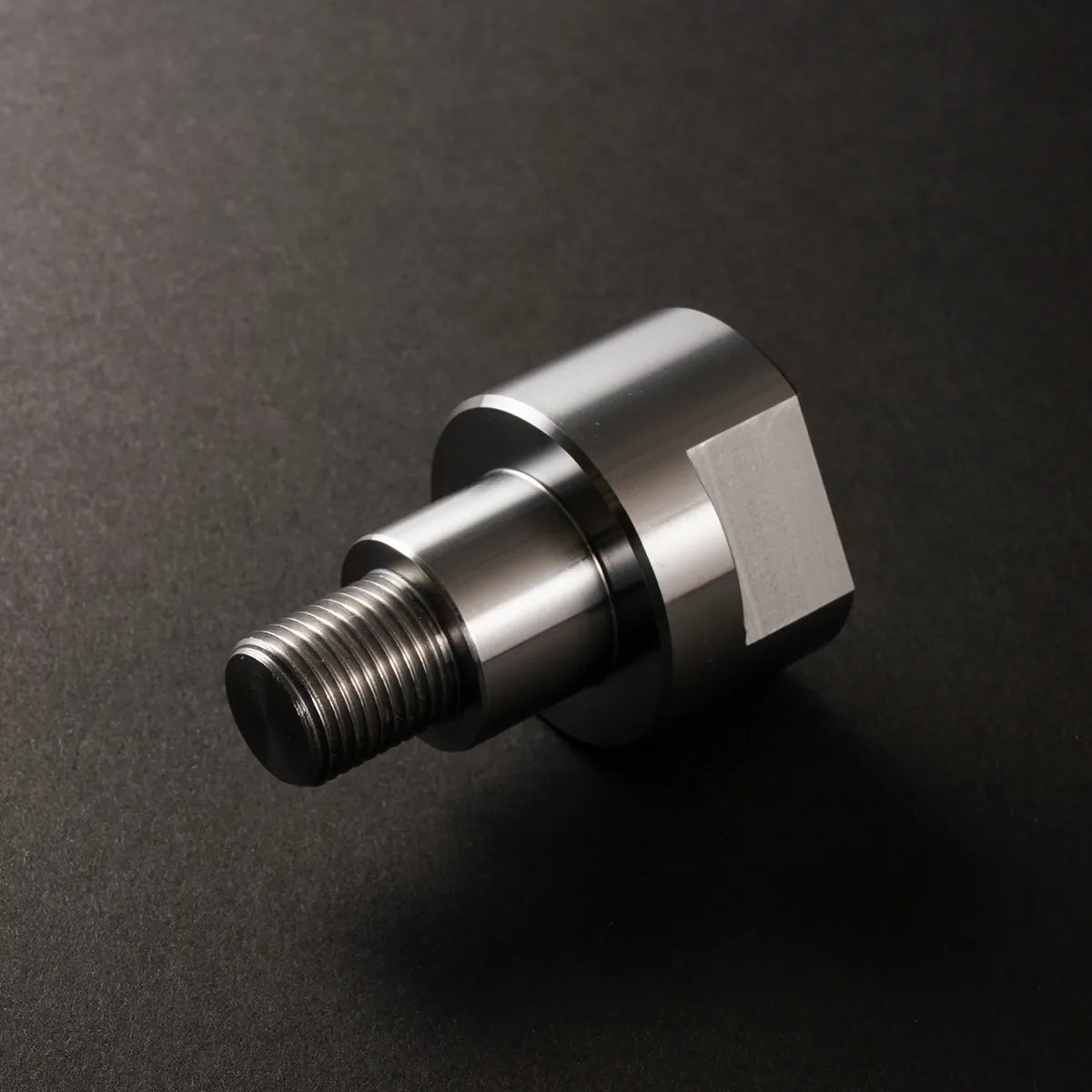

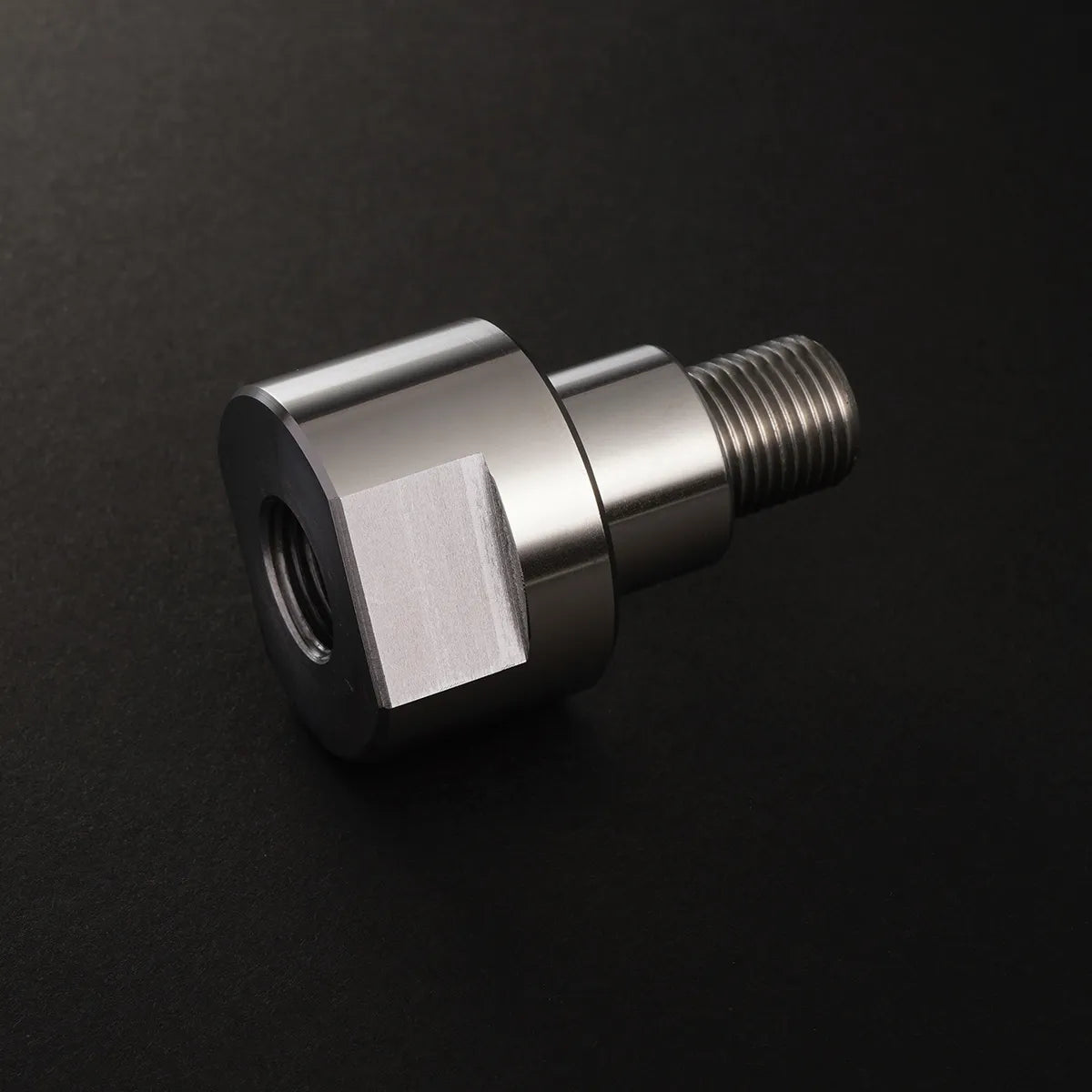

D-MAX D1SPEC Turning Angle UP Adapter (86GR86)
By attaching it between the steering rack and the tie rod, it increases the travel distance of the steering rack and improves the turning angle. Since it increases the turning angle and extends the tie rod at the same time, it can compensate for the length when extending the lower arm, etc. It is an essential item for cars that have had their front knuckles replaced.
*Please check the travel distance of the steering rack you are using before using. Depending on the steering rack you use, it may be damaged.
■Compatible models
| 86/GR86 | ZN6/ZN8 |
|---|---|
| BRZ | ZC6/ZD8 |
■Specifications
| Material | S45C |
|---|
*When installing, please apply a wrap of Locktite or similar to the threads to prevent loosening before installing.
*Please check the amount of movement of the steering rack you are using carefully before using.
*Depending on the steering rack you use, may be damaged.
*Installation is on the driver's side.
*Once installed, you will need to adjust the steering center.
