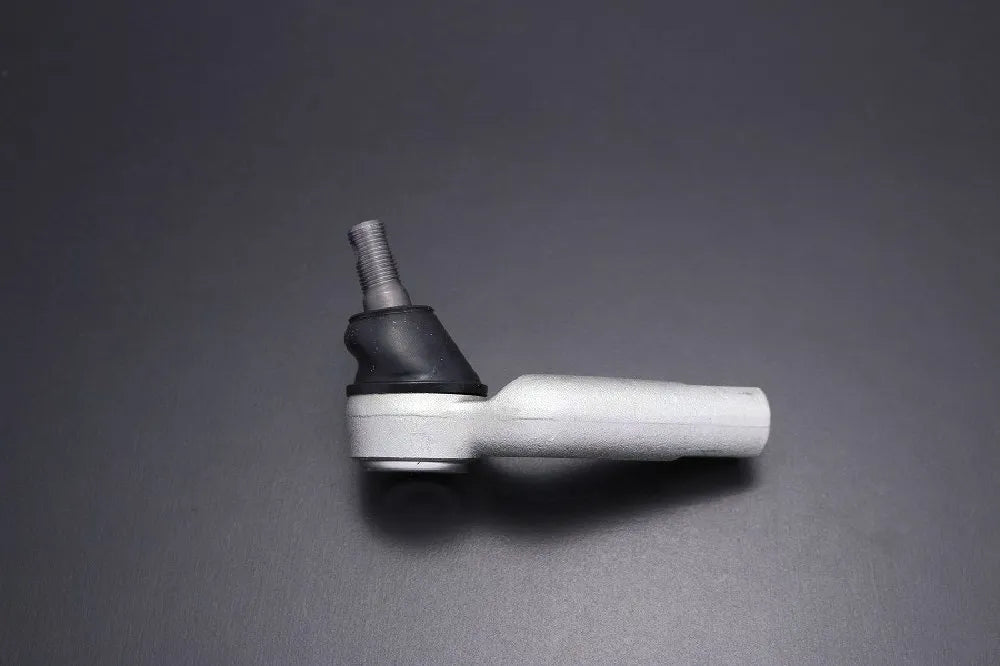

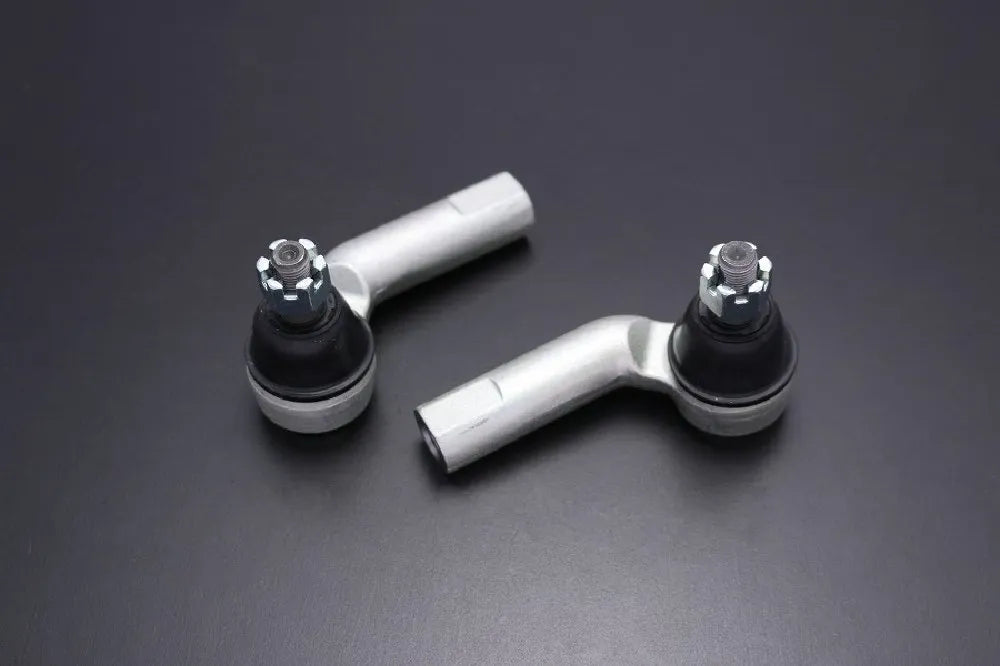

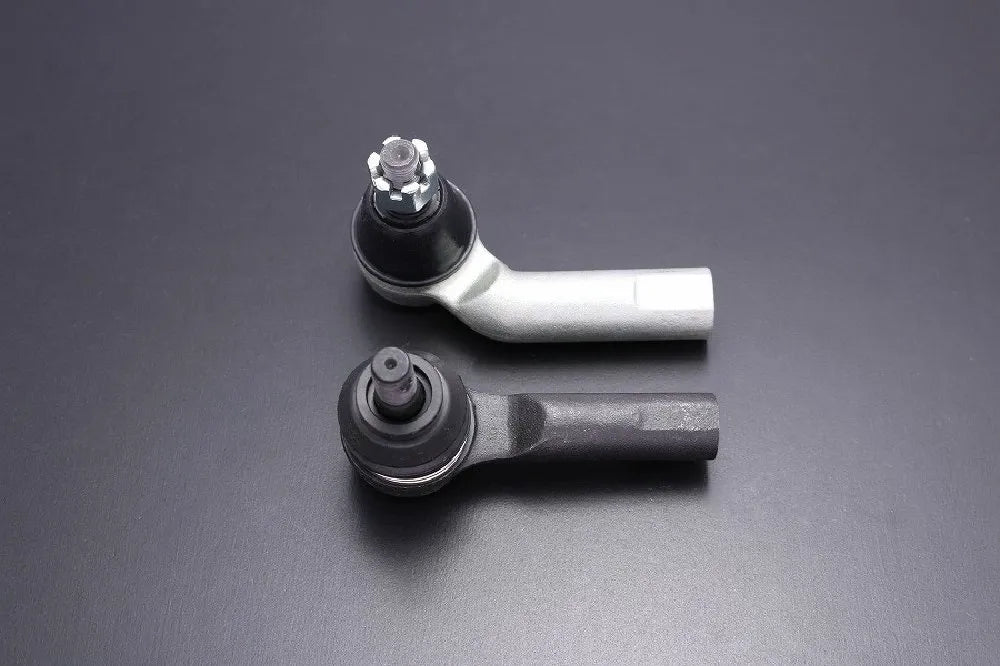

D-MAX D1SPEC Tie Rod End Offset Ver. (S14 Series)
In recent years, the maximum turning angle of drift vehicles has only continued to evolve. The offset tie rod end is a product that significantly reduces the situation where the steering does not return smoothly when the maximum turning angle is reached during drift driving.

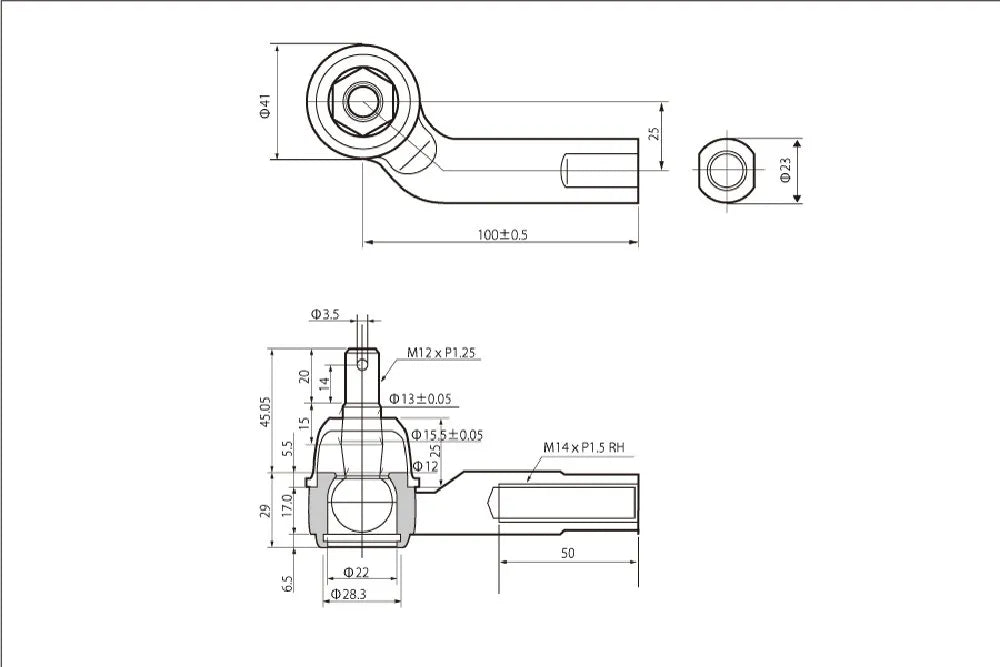

■ Specifications
| Rod Diameter | 23Ф |
| Adjustment pitch /S14 series | 1.5mm |
■Material
| Main unit | S45C |

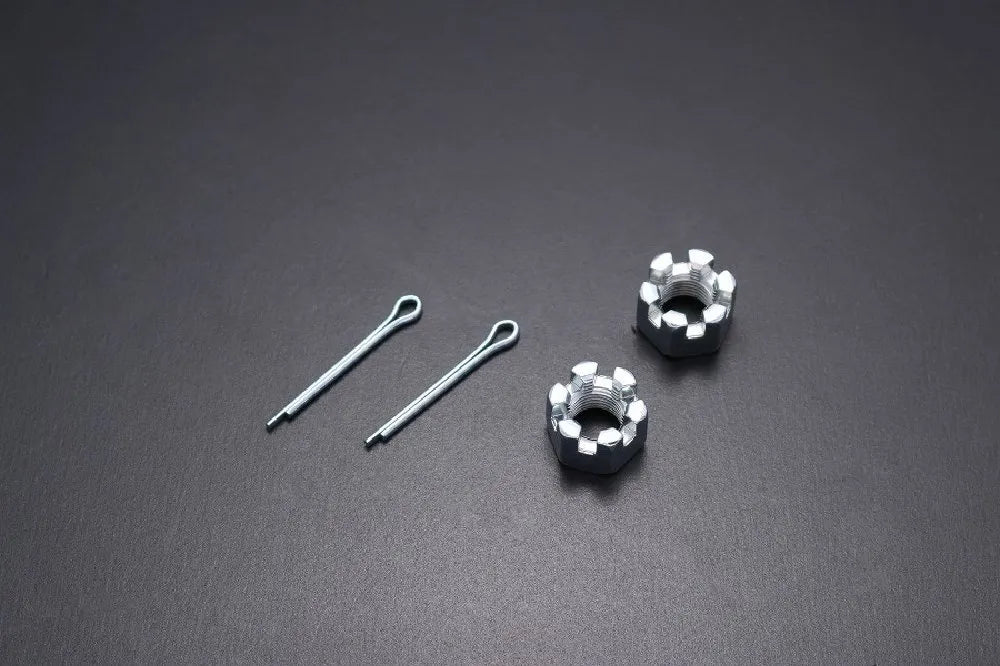

■Accessories
| nut | 2 pieces |
| Cotter pin | 2 bottles |
■ Compatible Models
| Compatible (M14) |
S14/S15 (high-cast vehicle) A31/C33/ECR33/ER34/C34/C35/HCR32 |
| Not compatible (M12) | S13 series (M12)...(R)PS13/S15 (vehicles without HICAS) |
*Because it is offset, it puts a lot of strain on the tie rod.
*Cannot be installed on genuine suspension. Conditions apply for installation.
*Varies depending on the vehicle model, but can only be installed when used in conjunction with our tie rod.
*This part is necessary when there are not enough tie rods or ends, such as short knuckles or extended lower arms.
*If installed on a vehicle with genuine knuckles or genuine front lower arms, proper alignment adjustment may not be possible.
