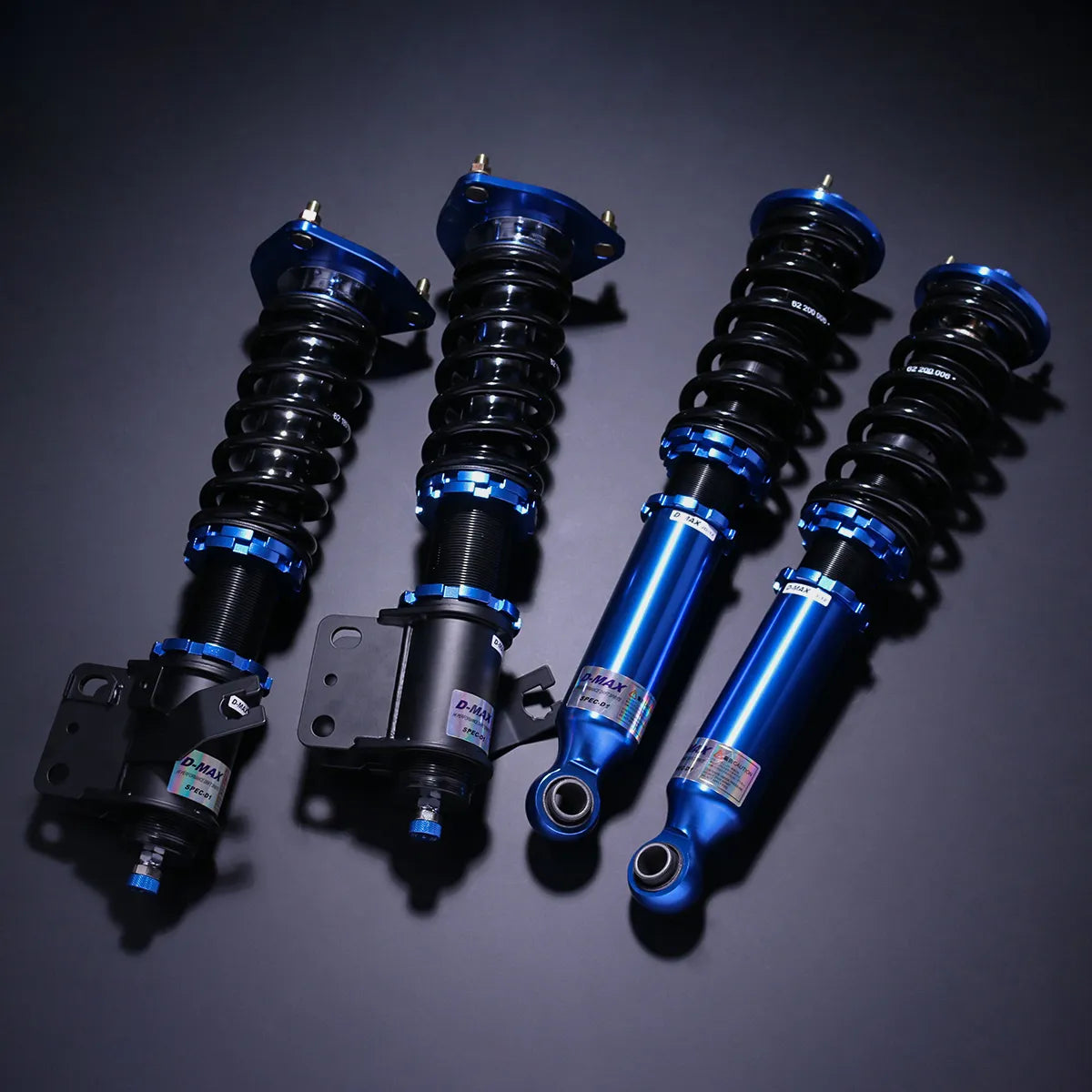

D-MAX D1SPEC Suspension KIT 180SX/S13

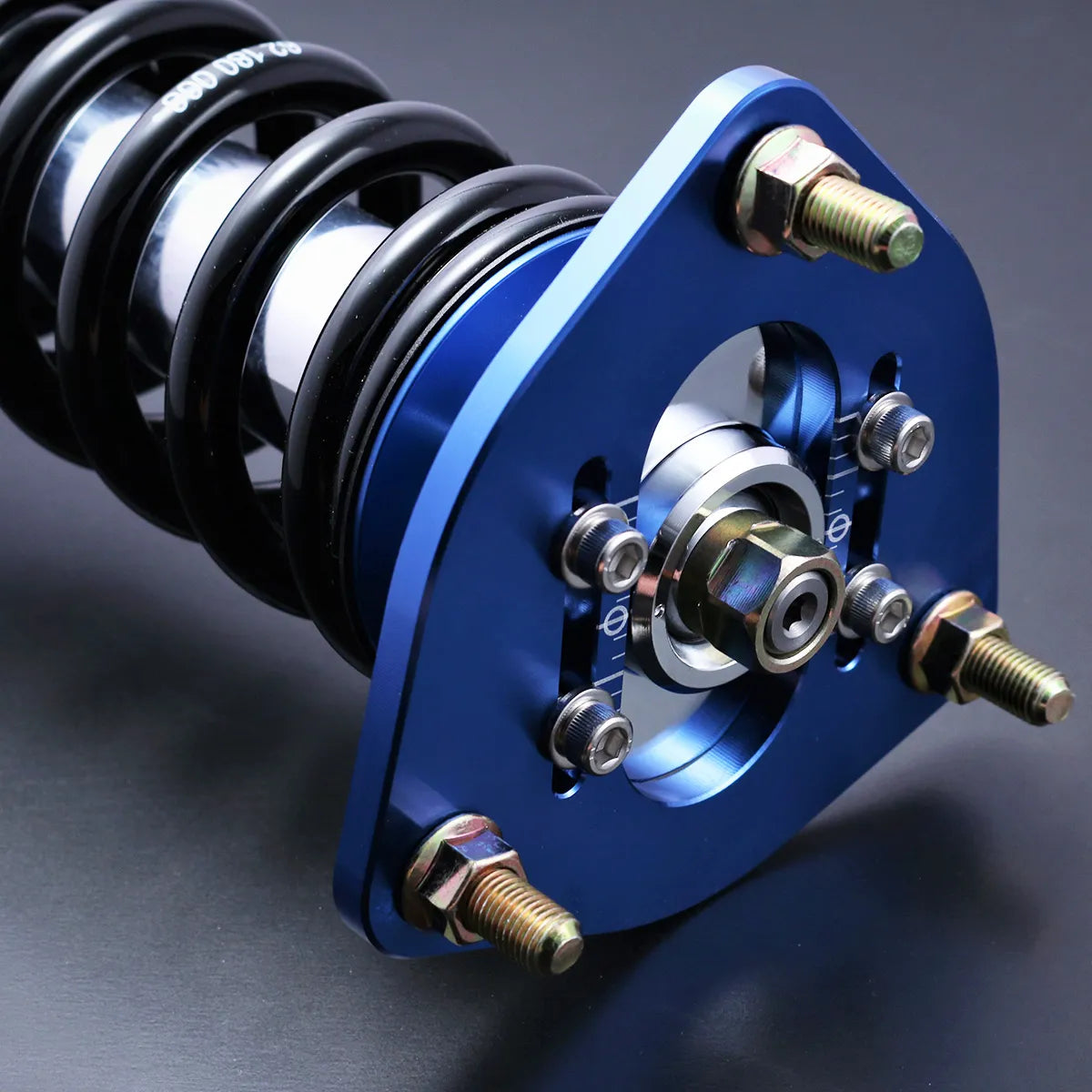

D1SPEC suspension has 32 levels of damping control to allow full range, from international circuit level with high grip tires to normal driving level close to OEM. The pillow ball adjustable upper mount is made of duralumin, ensuring high strength and allowing precise camber adjustment. In addition to controllability during drifting, it ensures rear stroke and allows the feet to move without losing traction. In D1STREETLEGAL, it won six times from 2008 to 2010 and won the series for two consecutive years, so it is a suspension that produces results.
■ Compatible Models
| Model | RPS13/KRPS13/KRS13/RS13/S13/KS13/PS13/KPS13 |
■Specifications/Front
| Inverted/Upright | Handstand |
| free length | 180mm |
| Spring rate | 8Kgf/mm |
| Spring Type | Straight winding |
| Inner diameter | 62Ф |
| Upper Mount | Piro |

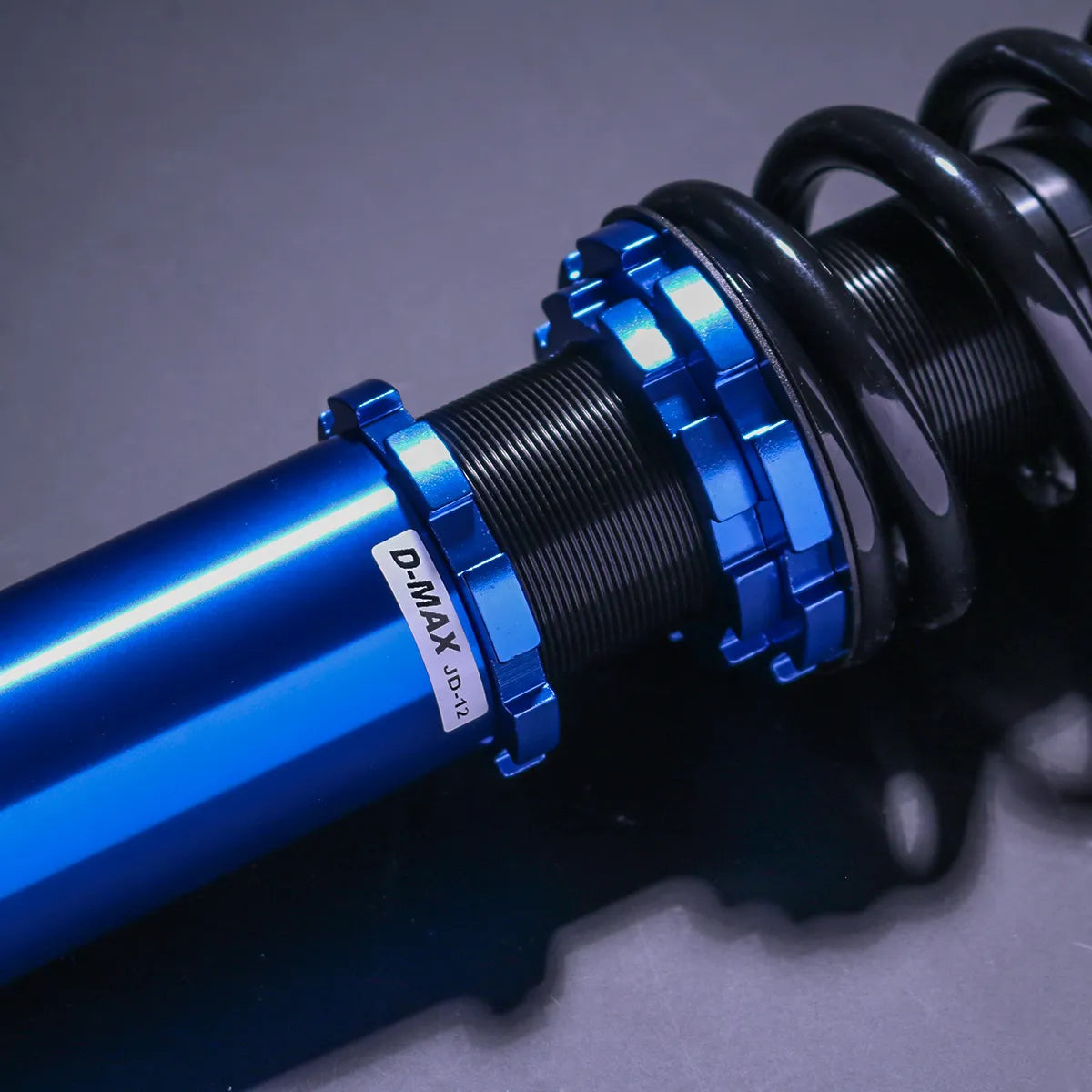

| Total length adjustment method | Full tap type |

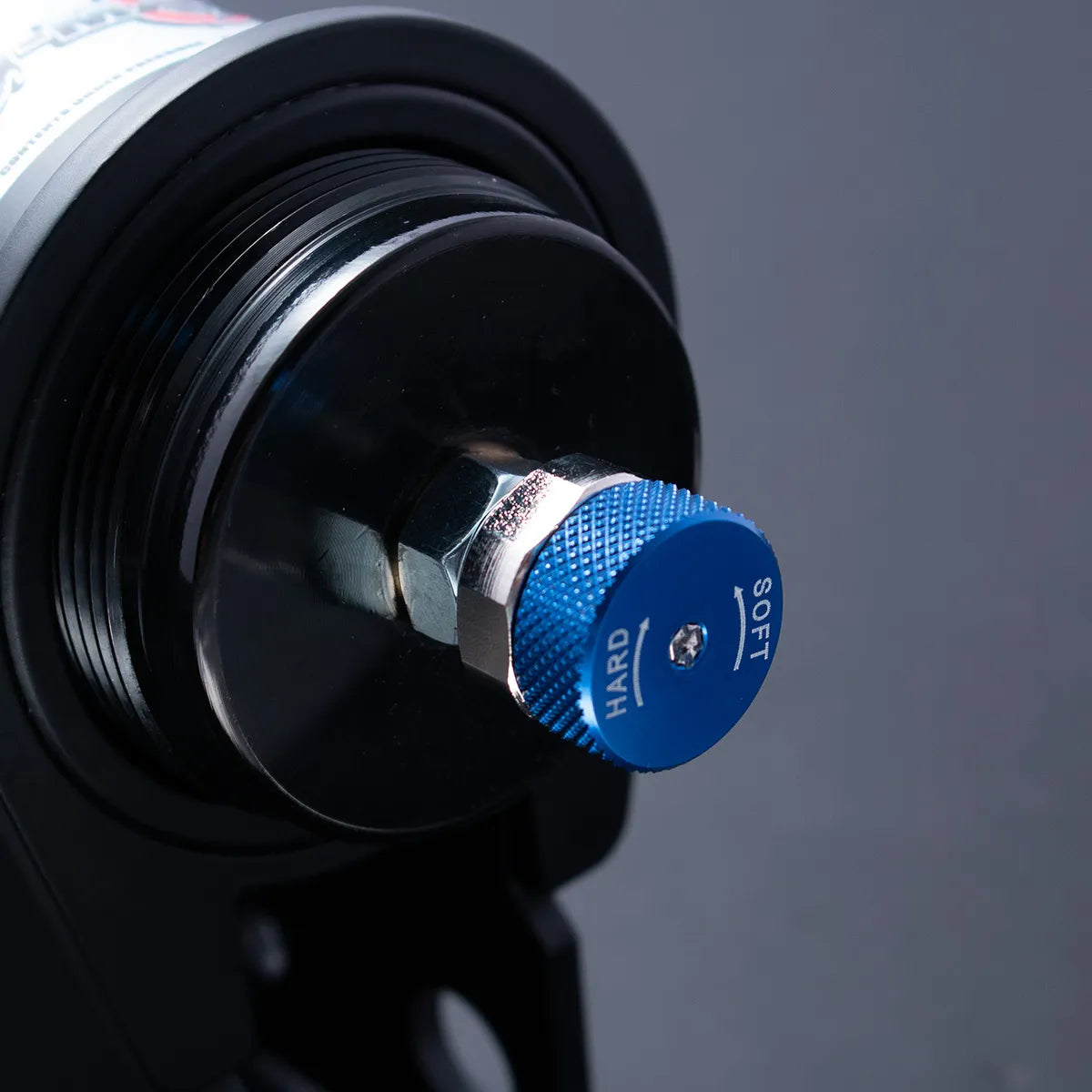

| Damping force adjustment method | Dial Type |
| Damping Adjustment | 30 stages |
■Specifications/Rear
| Inverted/Upright | Upright |
| free length | 200mm |
| Spring rate | 6Kgf/mm |
| Spring Type | Straight winding |
| Inner diameter | 62Ф |
| Upper Mount | Piro |
| Total length adjustment method | Full tap type |
| Damping force adjustment method | Dial Type |
| Damping Adjustment | 30 stages |

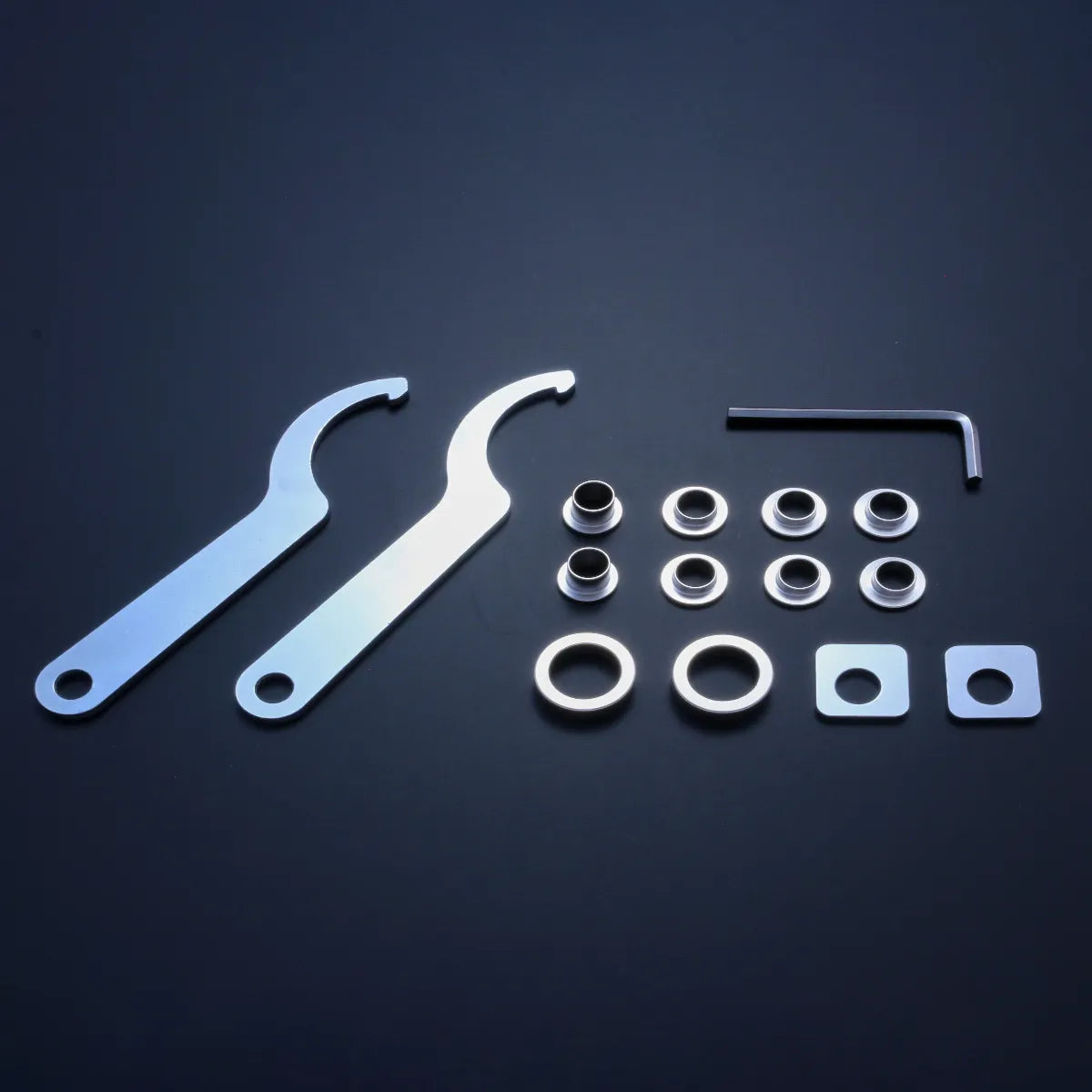

■Accessories
| Camber adjustment plate | 2 sheets |

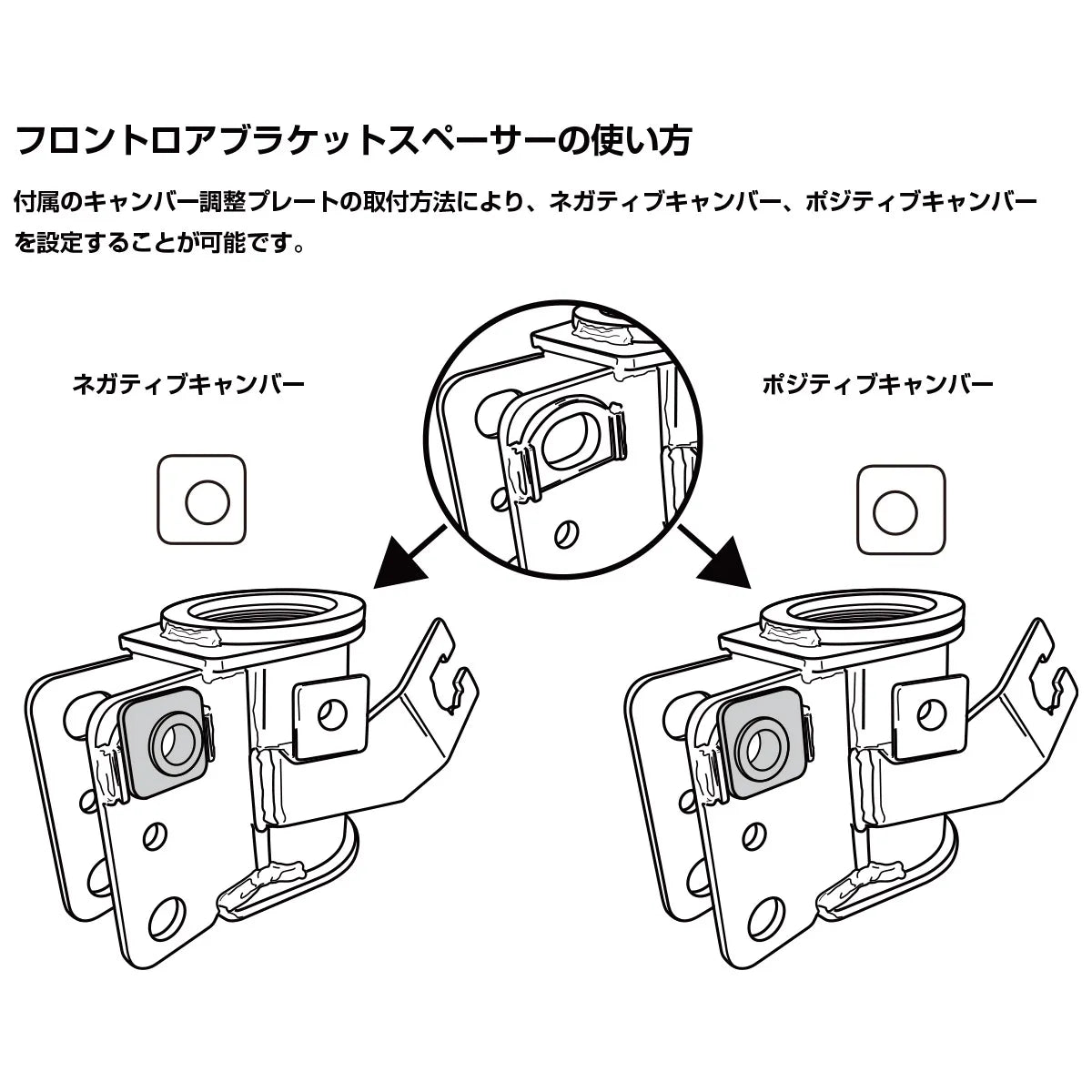

| Rear bracket spacer | 2 sheets |
| Front lower bracket collar | 8 pieces |
| Height-adjustable suspension wrench | 2 bottles |
| Hexagonal wrench | 1 bottle |
■Spring rate change (front)
| free length | Spring rate | Inner diameter |
| 180mm | 10Kgf/mm | 62Ф |
| 180mm | 9Kgf/mm | 62Ф |
■Spring rate change (rear)
| free length | Spring rate | Inner diameter |
| 200mm | 8Kgf/mm | 62Ф |
| 200mm | 7Kgf/mm | 62Ф |
Product Code: DMSH001AT1
JAN code: 4571433801732
