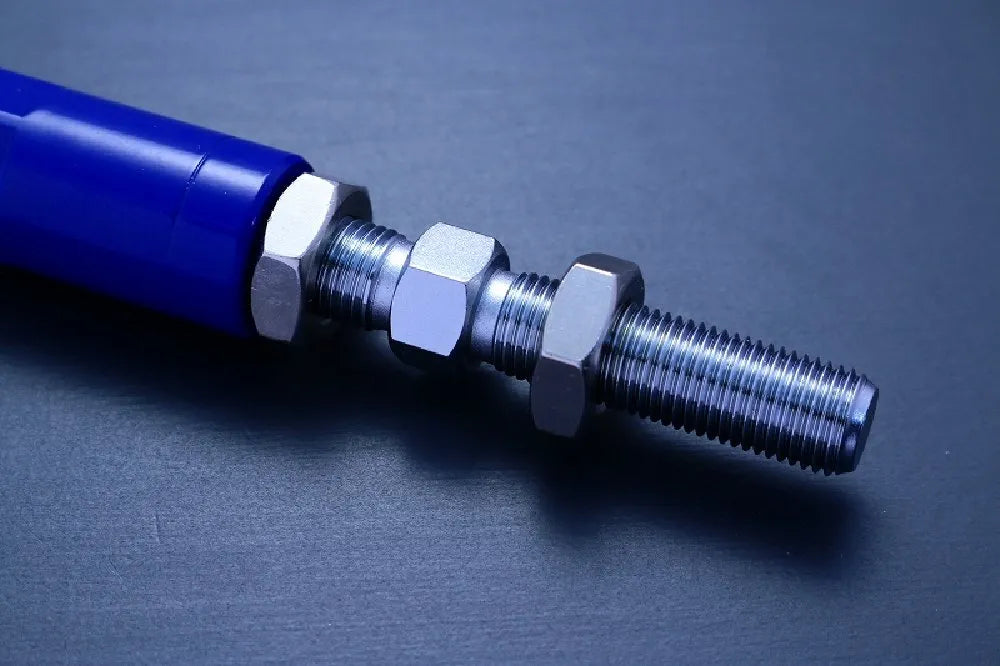

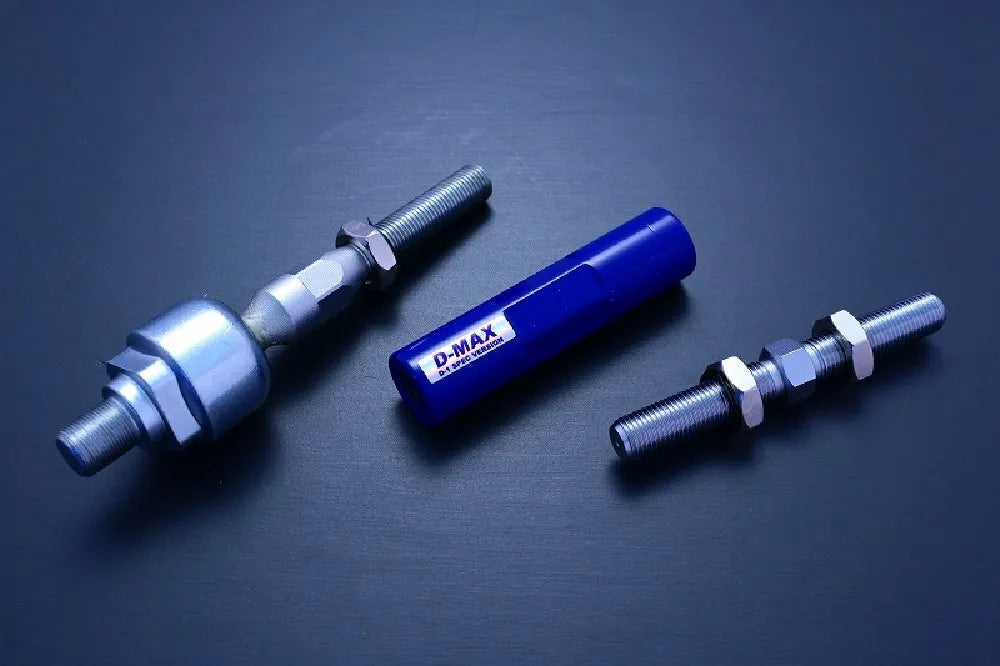

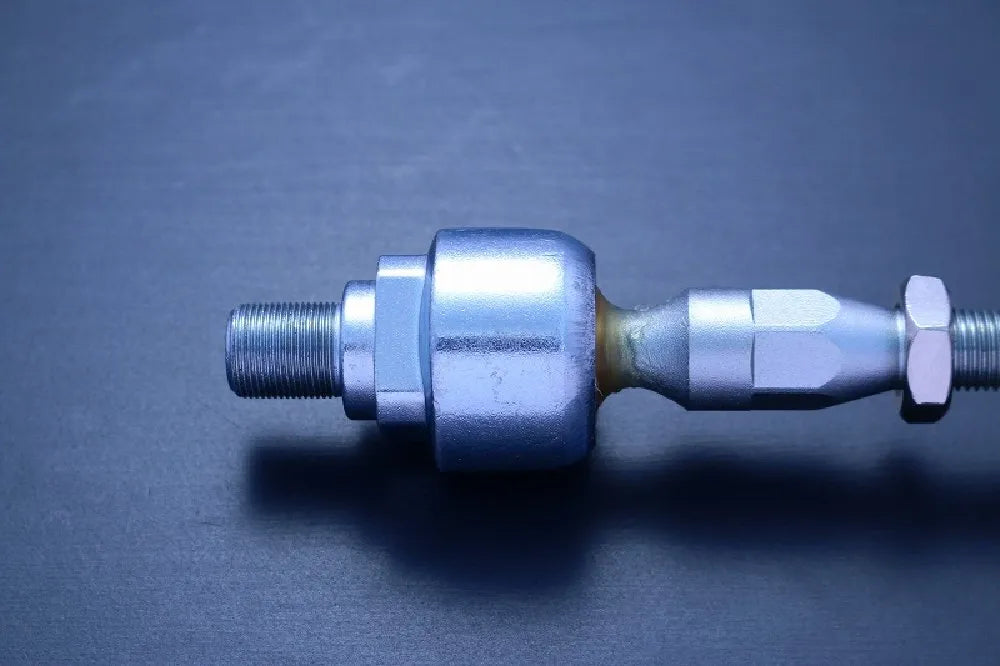

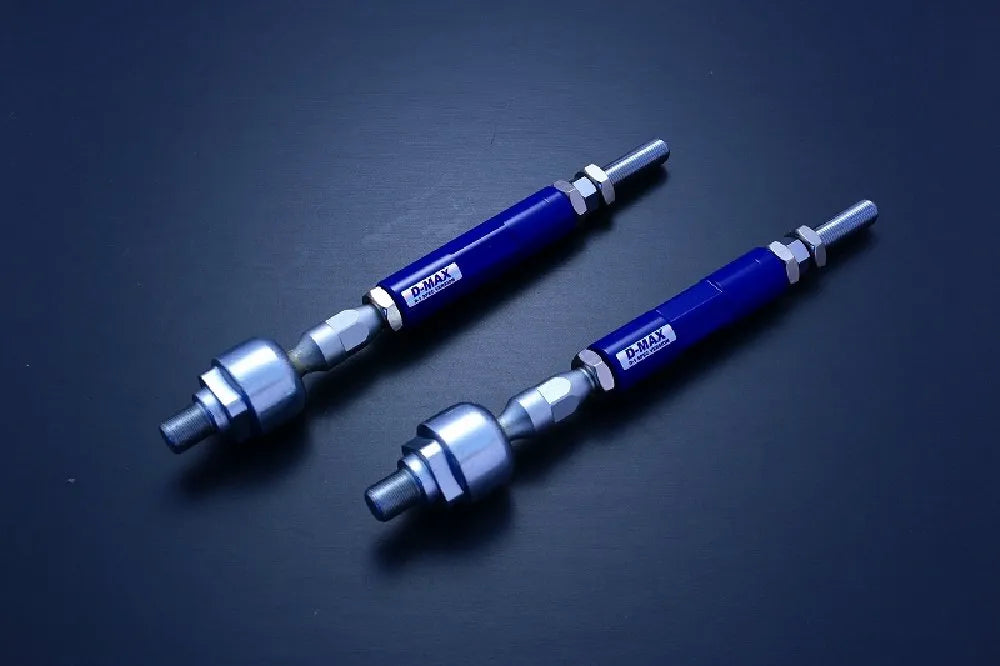

D-MAX D1SPEC Reinforced Tie Rod TypeR (SR series)
The D1SPEC reinforced tie rod type R has a much wider adjustment range than conventional reinforced tie rods. This means that it can be used with extended lower arms or short knuckles without the need for additional parts. Of course, it is also compatible with cars with genuine knuckles. Many reinforced tie rods increase the turning angle by inserting a spacer, but D-MAX products are molded as a single piece, which increases the strength and turning angle.

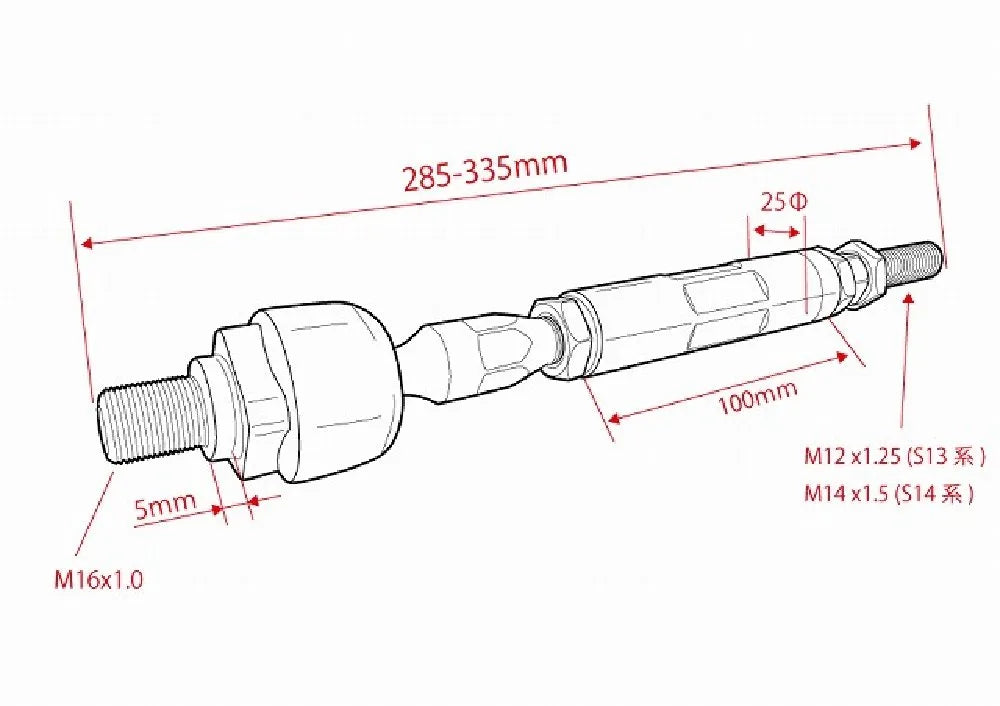

■Specifications
| Rod Diameter | Ф25 |
| Rod Thickness | 6mm |
| Adjustment method | Turnbuckle Type |
| Adjustment screw pitch | 1.5mm |
| Adjustment width | 50mm |
*Compared to OEM, the turning angle is significantly increased by adding a 5mm washer.

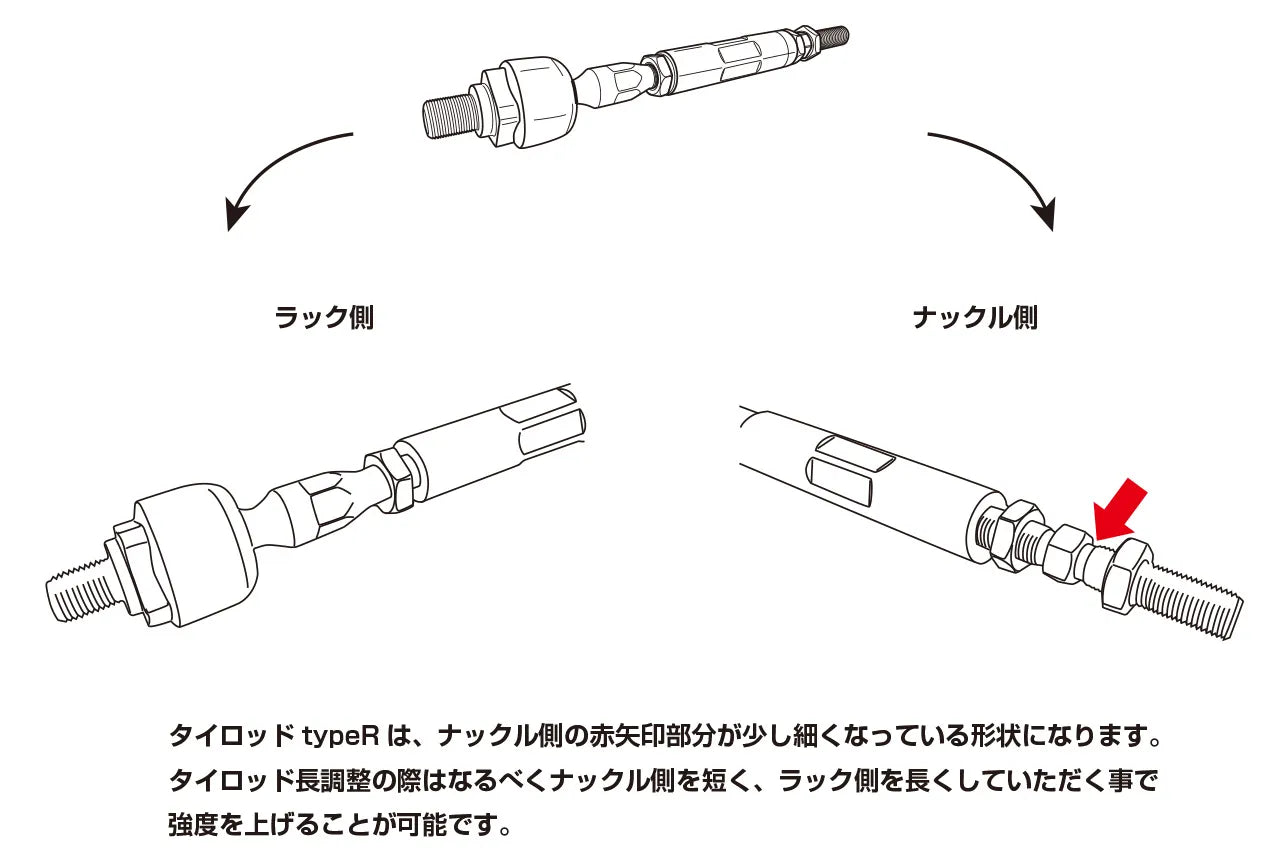

*When installing this product, please adjust the rack side.
■ Compatible models
| S13 series (M12) | (R)PS13/S15 (vehicles without HICAS) |
| S14 series (M14) |
S14/S15 (high-cast vehicle) A31/C33/ECR33/ER34/C34/C35/HCR32 |
- The extension rod (135mm) for the D1SPEC reinforced tie rod TypeR ( sold separately ) can be installed.
*Shipping charges apply for every 3 items.
Product code: DMSU056AT2 to DMSU057AT2
JAN code: 4571433802227 to 4571433802234
