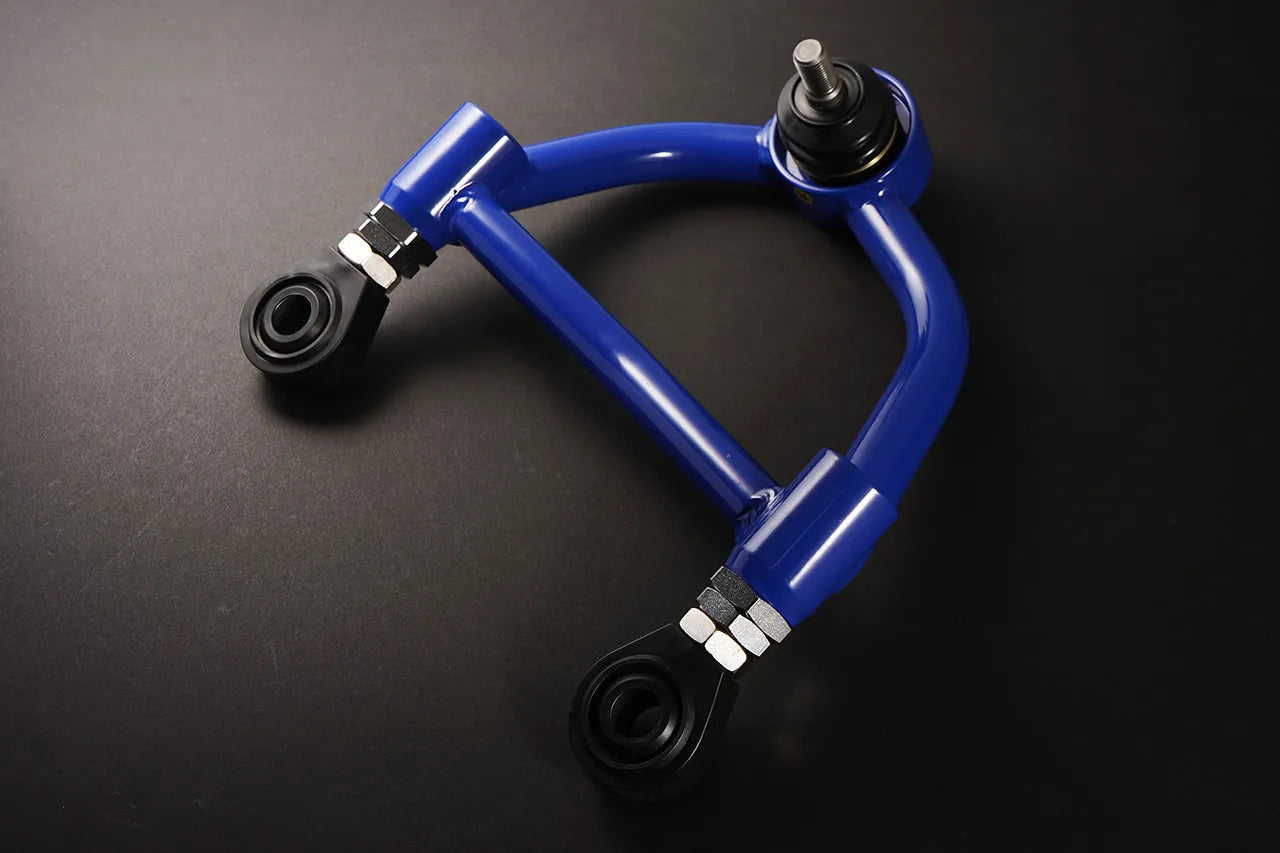

D-MAX D1SPEC Rear upper arm (90/100 series)
By installing this product, in the case of a lowered vehicle, the camber can be adjusted, allowing for a wider range of suspension settings than ever before, and grip performance is greatly improved by increasing the contact area of the rear tire. By simply replacing with this product, you can improve unstable behavior when the genuine rubber bushings are worn out. In addition, by increasing the rigidity of each part of the genuine arm that has been used for many years, you can eliminate concerns and make settings that were not possible before.

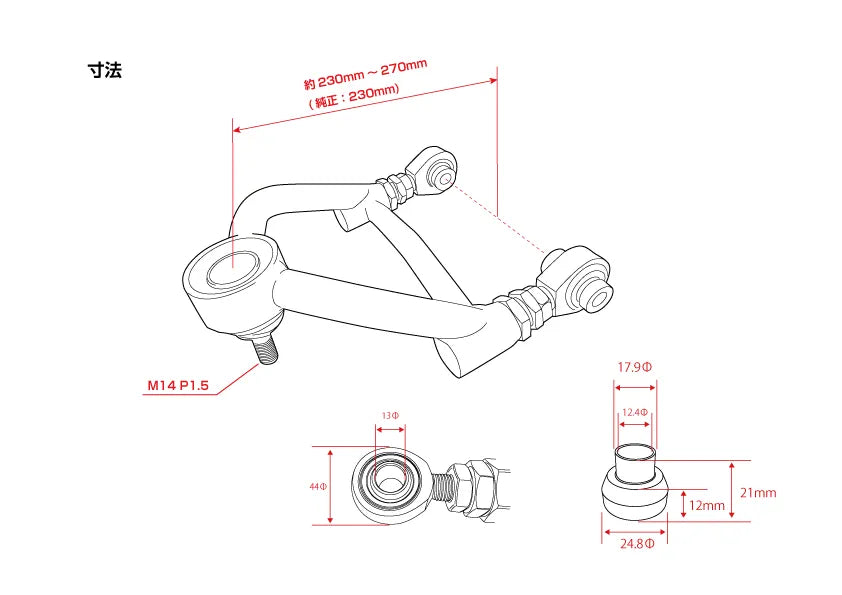

■ Specifications

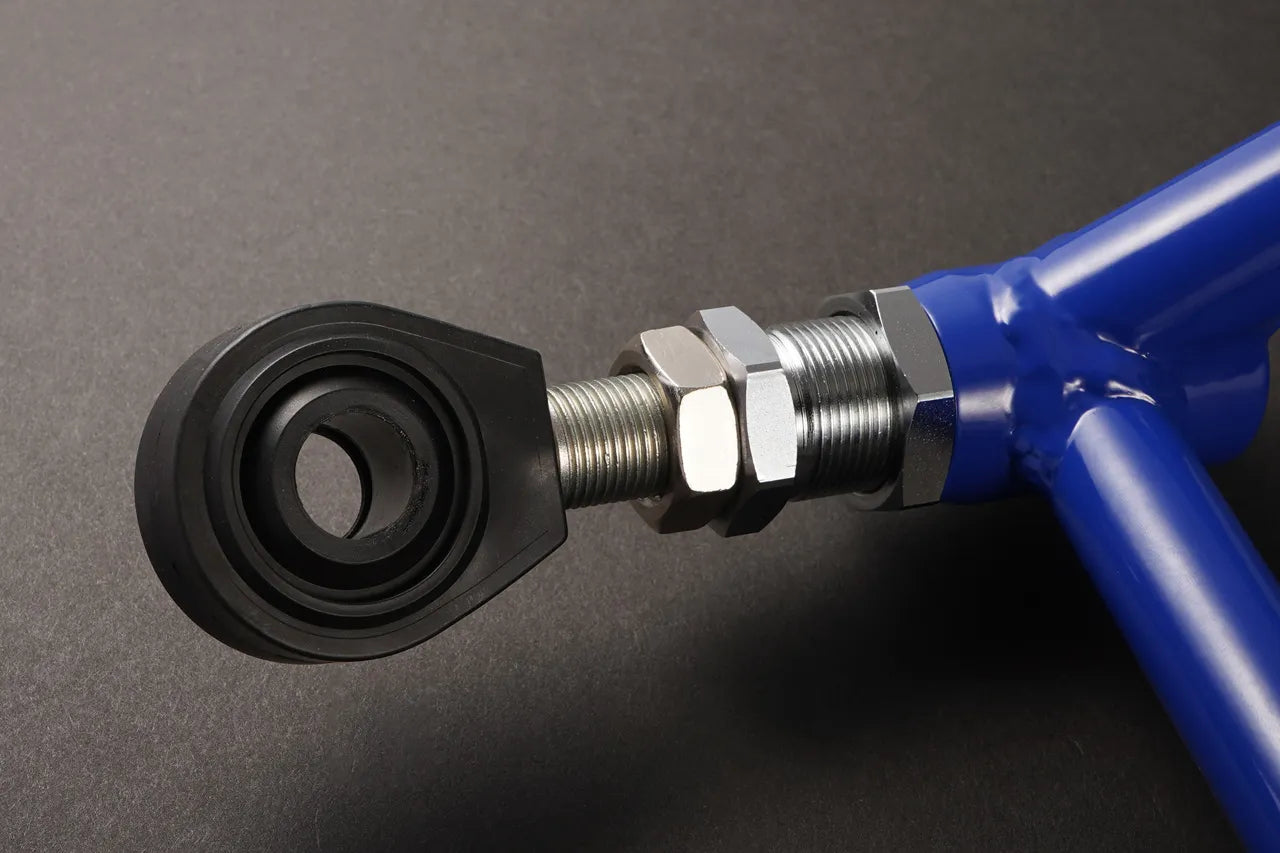

| Rod diameter | Maximum 26Ф/Partial 22Ф |
| Rod thickness | 3mm |

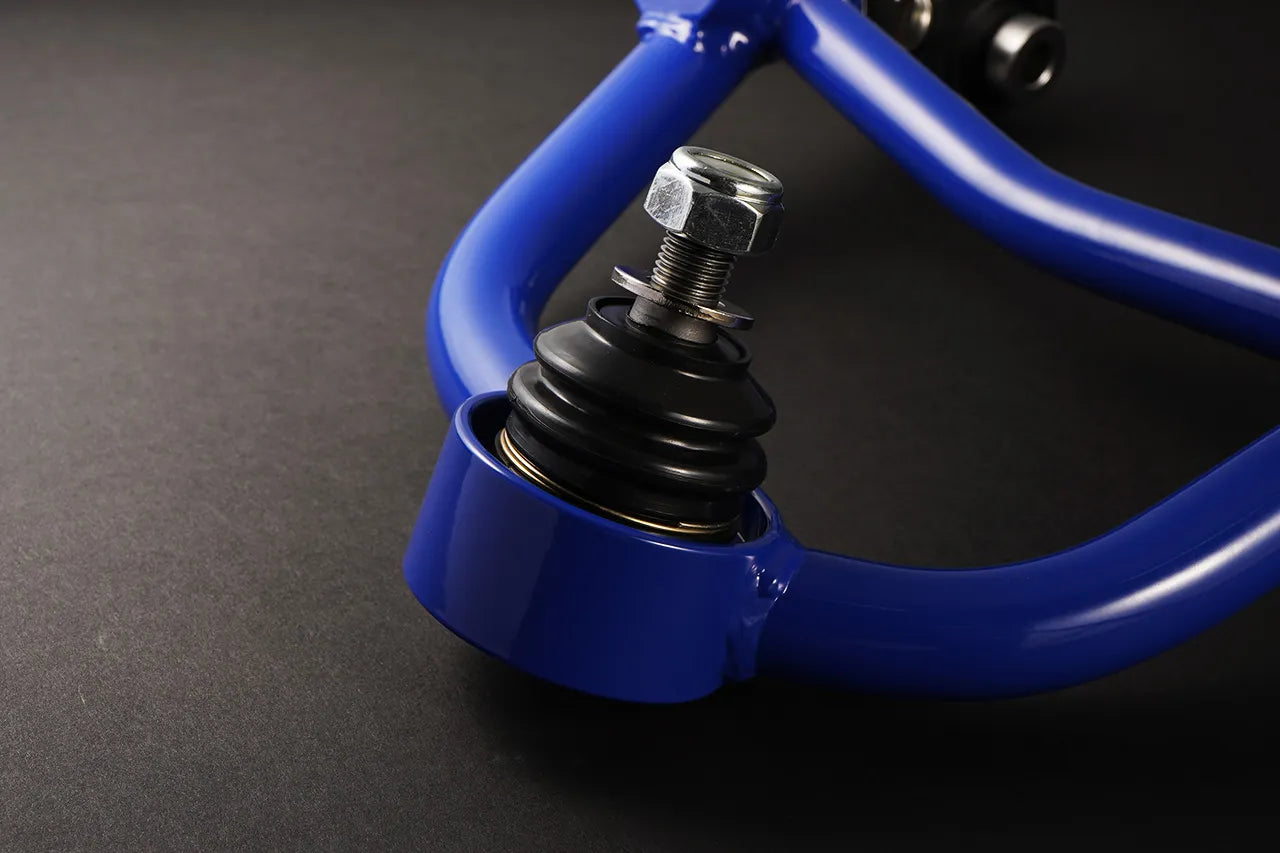

| Outer diameter of ball joint | 44Ф |
| Inner diameter of ball joint | 13Ф |
| Adjustment range | 40mm larger than the original |

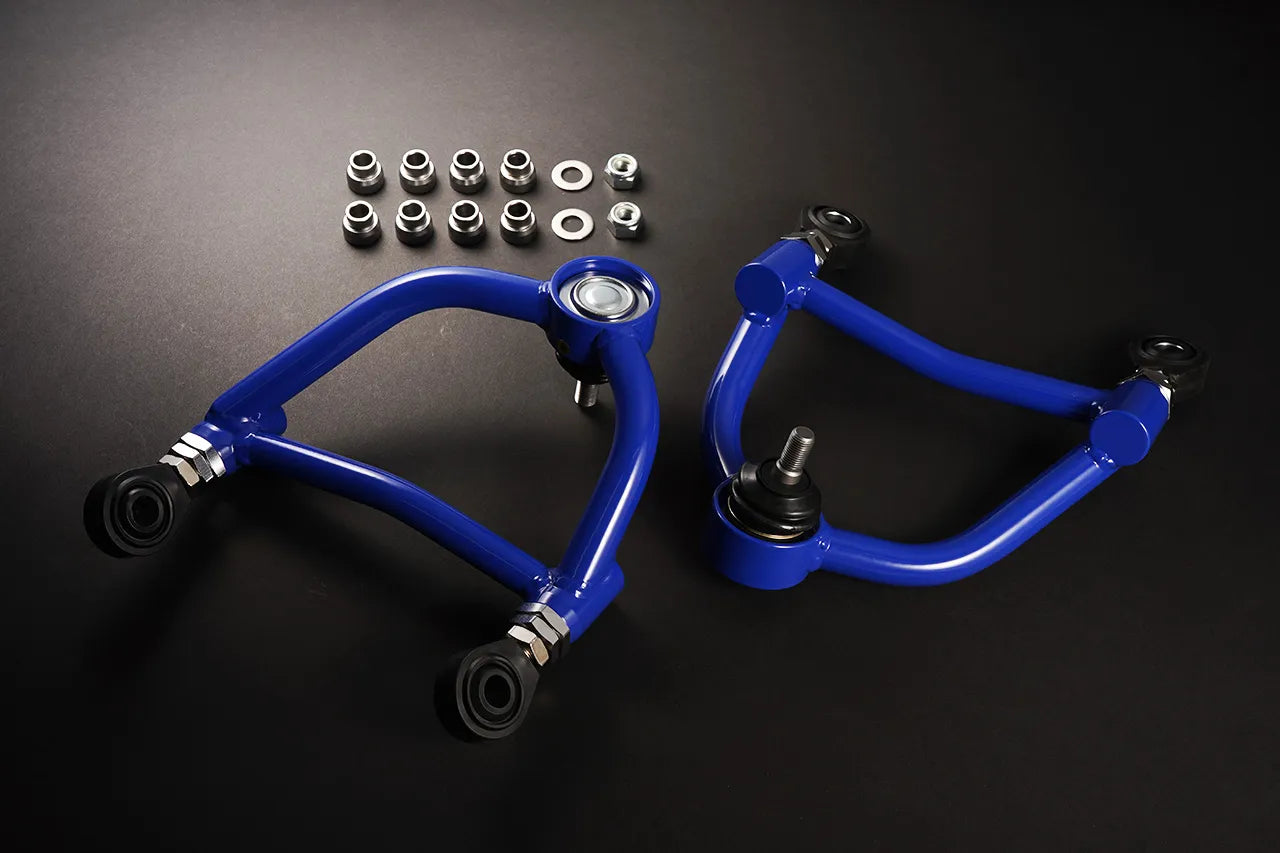

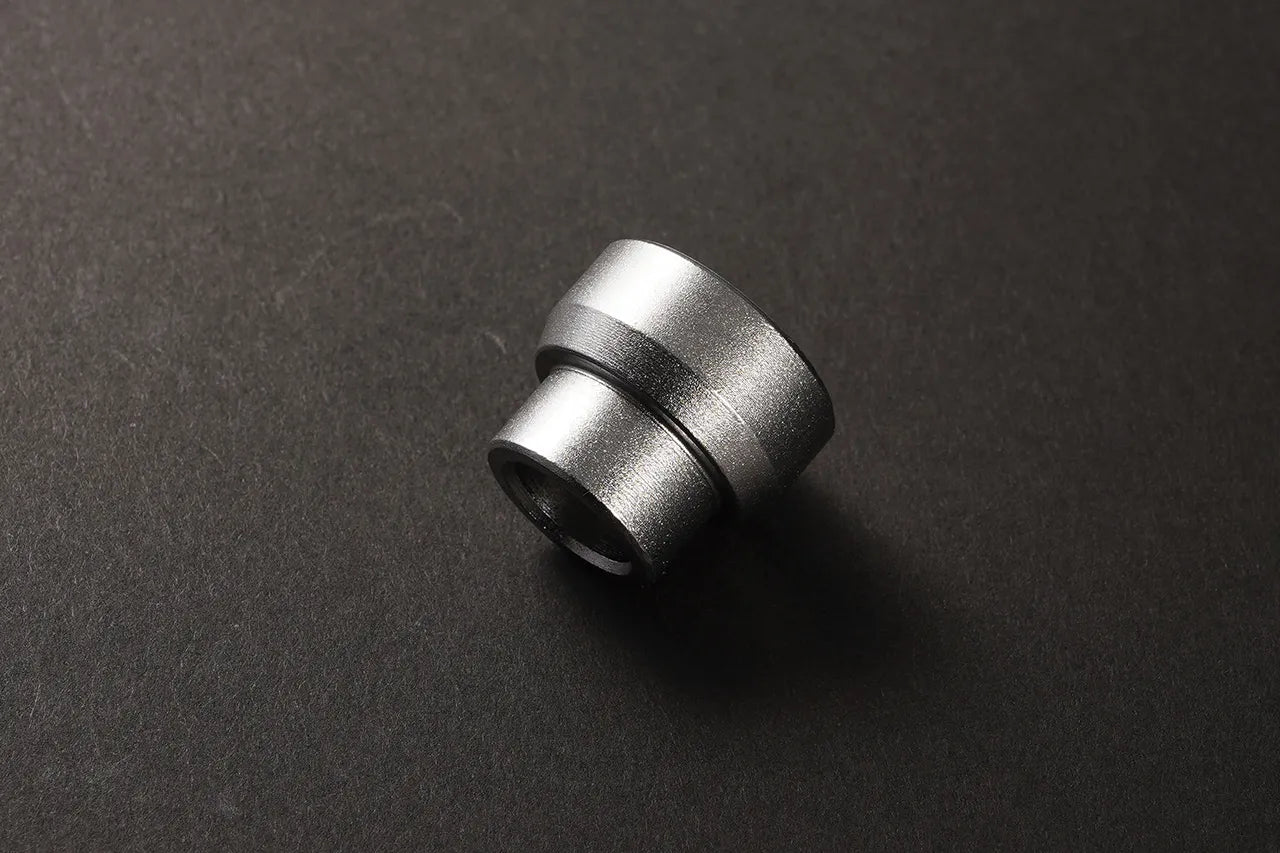

■ Accessories
| Color | 8 pieces |
| Washer | 2 pieces |
| Nut | 2 pieces |
■ Compatible models
| Compatible | GX90/JZX90/GX100/JZX100 |
| Not compatible | 4WD vehicles of the above models |
-
If you purchase a set of three items - pillowcase rear lower arm + pillowcase rear toe control arm + rear pillowcase tension rod - the price will be ¥75,900 (tax included).
Product Code: DMSU26AT8JAN code: 4570130868895
