D-MAX D1SPEC Pyro Control Rod (Ver.1)
By changing to an adjustable pillow arm, the unstable behavior of the rear suspension can be corrected. By adjusting the toe angle, the rear under/over characteristics can be changed. The rod body is a turnbuckle type, so it can be adjusted even after installation. The member side and knuckle side can be adjusted to an equal length, reducing the load on the screw part, which is the most heavily loaded part. It is possible to not only set up the machine to your liking, but also to respond to sudden changes in road conditions.

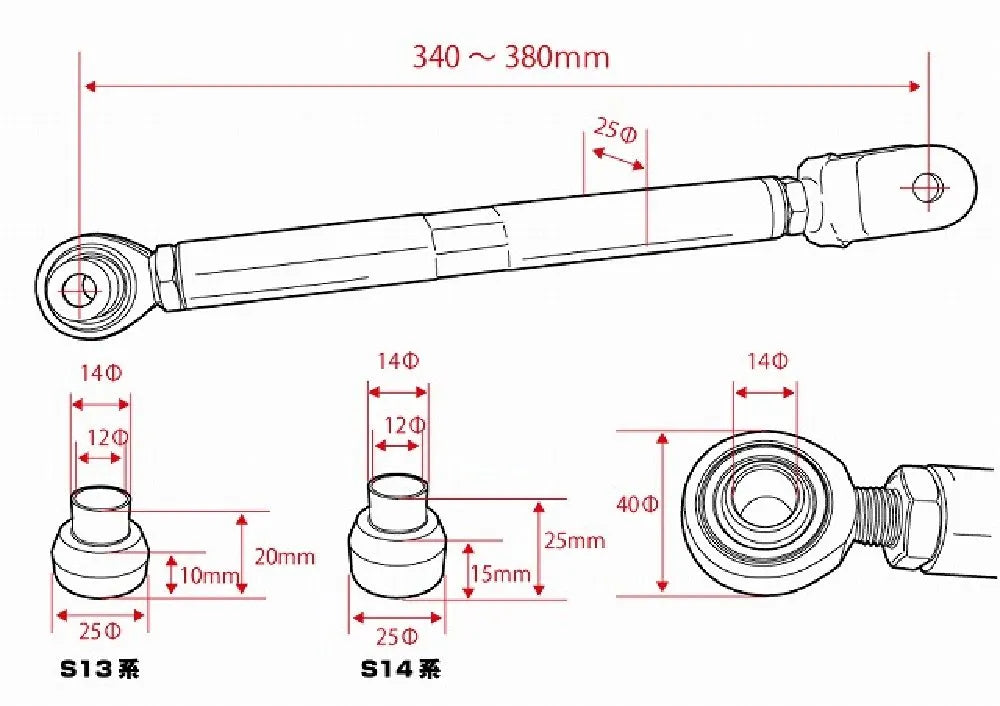

specification
| Rod Diameter | 25Ф |
|---|---|
| Rod Thickness | 6mm |
| Pyro outer diameter | 40Ф |
| Pyro inner diameter | 14Ф |
| Adjustment method | Turnbuckle Type |
| Adjustment Pitch | 1.25mm |
| Adjustment width | 40mm |
accessories
| color | 4 pieces |
|---|---|
| Pyro Rubber Cover | 2 pieces/standard equipment |
Compatible Model
| S13 series | (R)PS13/A31/C33/HCR32/HNR32/Z32 |
|---|---|
| S14 series | S14/S15/ECR33/ER34/C34/C35/WGC34/WGNC34/C34Laurel/Y32/Y33 |
| Not compatible | HCR32ABS equipped vehicle/HICAS equipped vehicle |
*Shipping charges apply for every 3 items.
Product Code: DMSU005AT2 ~ DMSU006AT2
JAN code: 4571433802104 to 4571433802111
