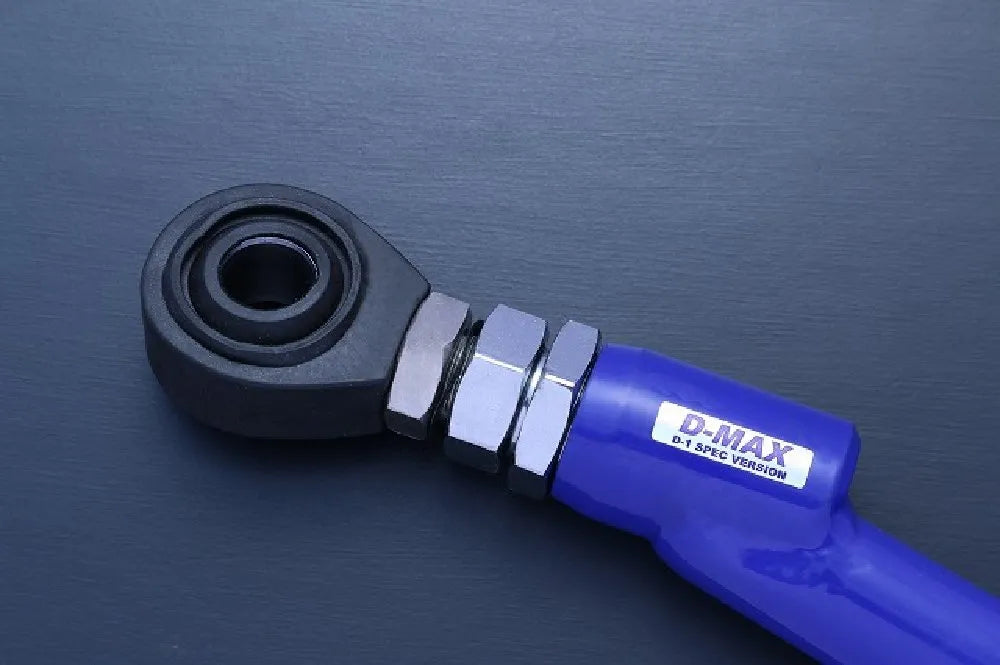

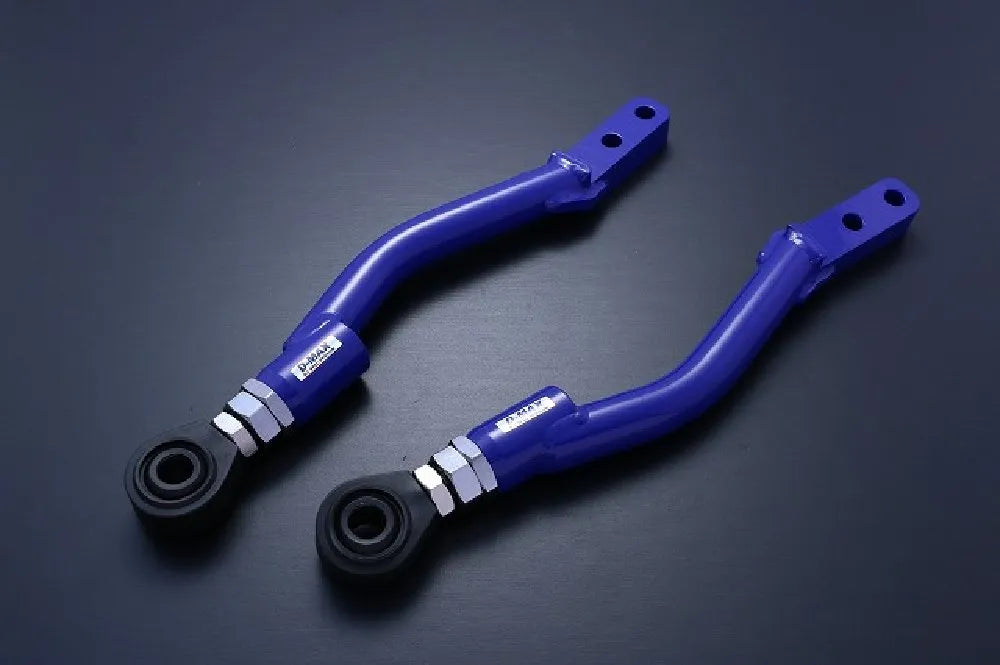

D-MAX D1SPEC Pillow tension rod offset type Ver2

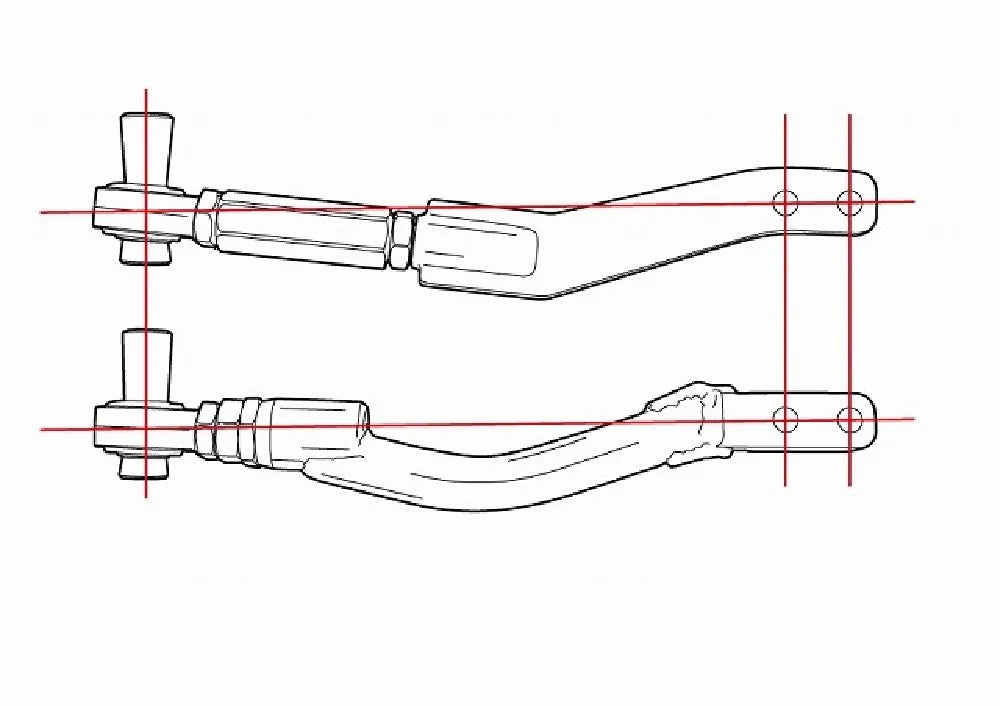

Ver2 is designed with a completely different shape from Ver1, which has been sold previously. Ver1 has also been improved many times to improve its strength, but in recent years, the appearance of high-grip tires, extended lower arms, and unprecedented knuckles with increased steering angle have caused the load on the tension rod to exceed the data, which led to the development of Ver2. In order to eliminate the lack of strength, the structure itself has been reviewed and the maximum clearance width has also been improved. The improved Ver2 has improved the setting range beyond the previously limited values.

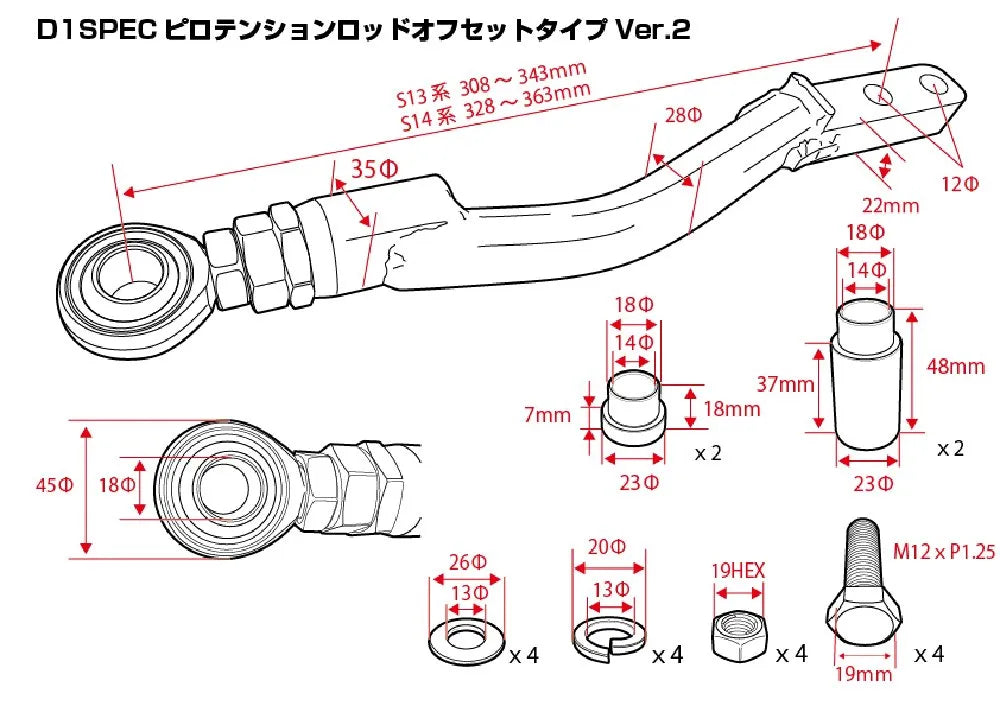

■ Specifications
| Rod Diameter | 28Ф (maximum part 35Ф) |
| Rod Thickness | - |
| Pyro outer diameter | 45Ф |
| Pyro inner diameter | 18Ф |
| Adjustment method | Turnbuckle Type |
| Adjustment screw pitch | 1.5mm |
| Adjustment width | 35mm 13 series/14 series |
* Please note that the inside of the tire (wheel) will come into contact with the genuine stabilizer before this product does .
| bolt | 4 pieces |
| nut | 4 pieces |
| Color (large) | 2 pieces |
| Color (small) | 2 pieces |
| Pyro Rubber Color | 2 pieces / standard equipment |
■ Compatible Models
| S13 series | (R)PS13/A31/C33/HCR32/Z32/Y32/Y33 |
| S14 series | S14/S15/C34/C35/WGC34 |
| Not compatible | Not for 4WD / Cannot be installed on R33/R34 as it will interfere with the stabilizer. |
*Since it is turnbuckle adjustable, the length can be adjusted while it is installed on the vehicle.
