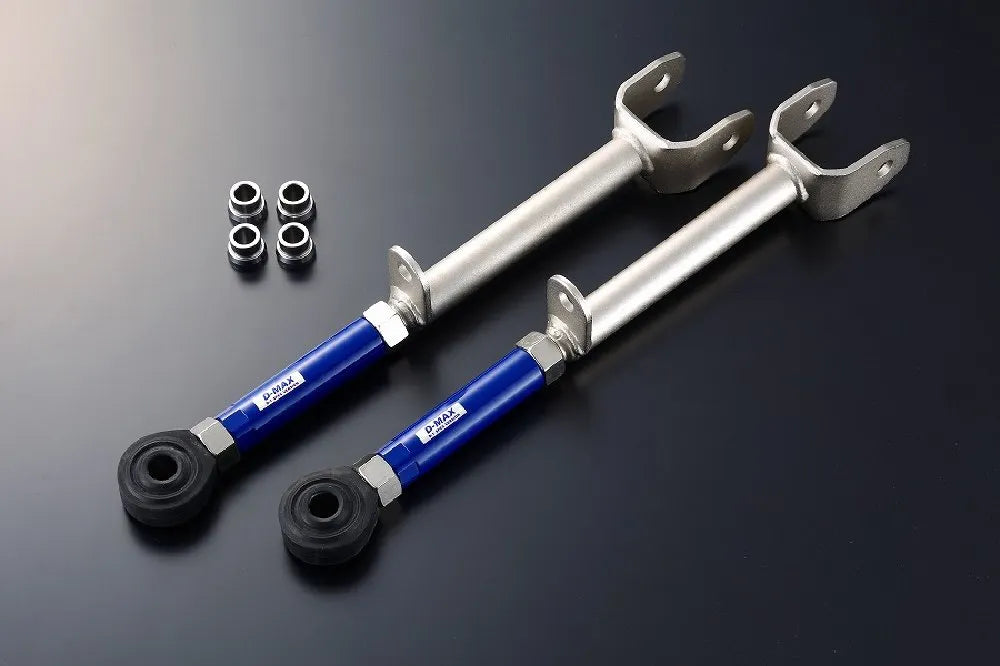

D-MAX D1SPEC Pillow Rear Arm
This adjusts the toe misalignment caused by lowering the car or changing the camber angle. By correcting the toe angle to the appropriate level, you can obtain an alignment setting that improves unstable behavior and increases traction. In addition to increasing traction, it also prevents uneven tire wear by properly adjusting the contact area with the road surface.

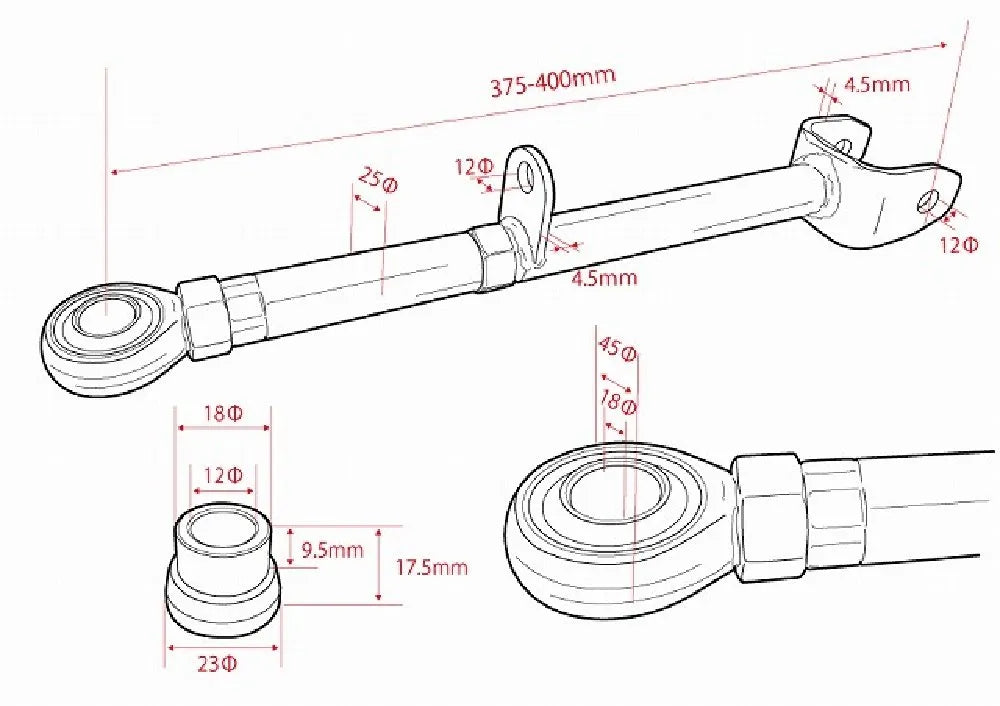

■ Specifications
Rod Diameter | 25Ф |
Rod Thickness | 6mm |
Pyro outer diameter | 45Ф |
Pyro inner diameter | 18Ф |
Adjustment method | Turn knuckle type |
Adjustment screw pitch | 1.5mm |
Adjustment width | 25mm |
■ Accessories
color | 4 pieces |
Pyro Rubber Cover | 2 pieces / standard equipment |
■ Compatible Models
Can be installed | GX90/JZX90/GX100/JZX100 |
Not compatible | The above 4WD vehicles, JZX110/SXE10/JZA80/JZZ30/JZS160 |
*Shipping charges apply for every 3 items.
Product Code: DMSU026AT2
JAN code: 4571433802128
Choose options


D-MAX D1SPEC Pillow Rear Arm
Sale price€252,95
