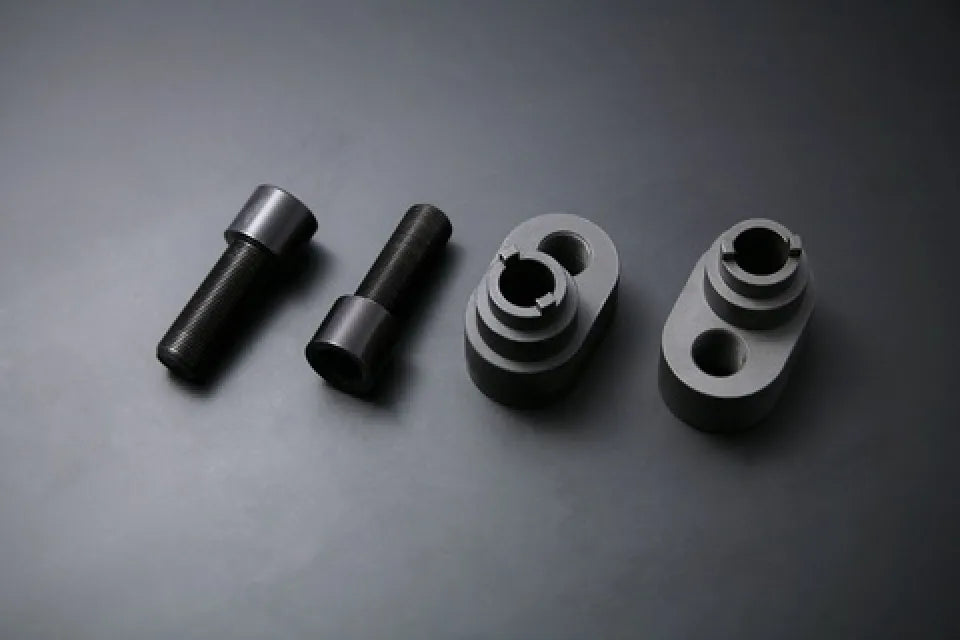

D-MAX D1SPEC Offset Rack Adapter (Ver.1)

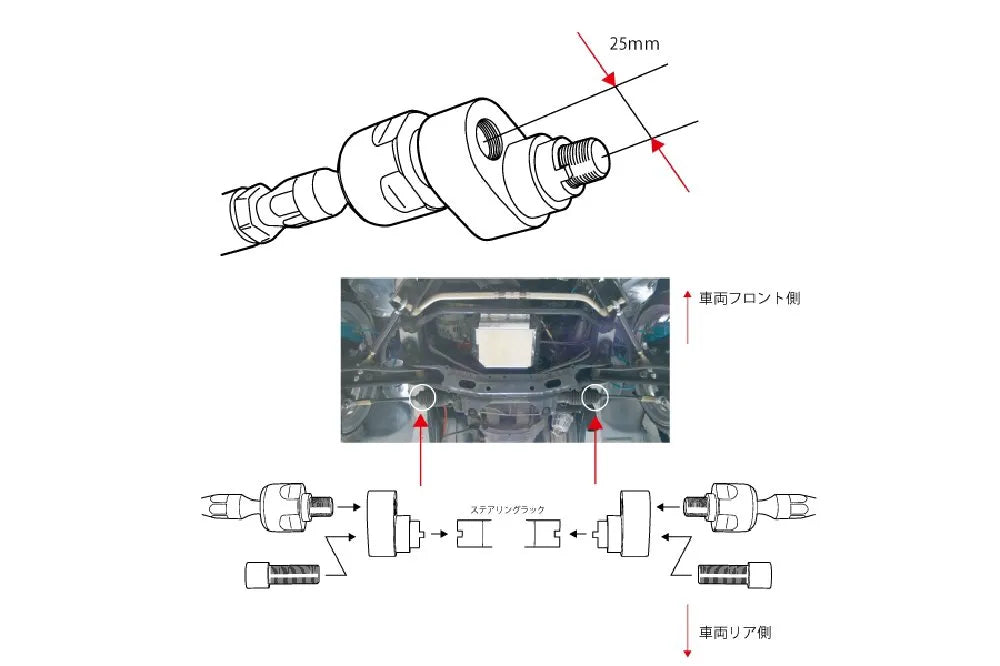

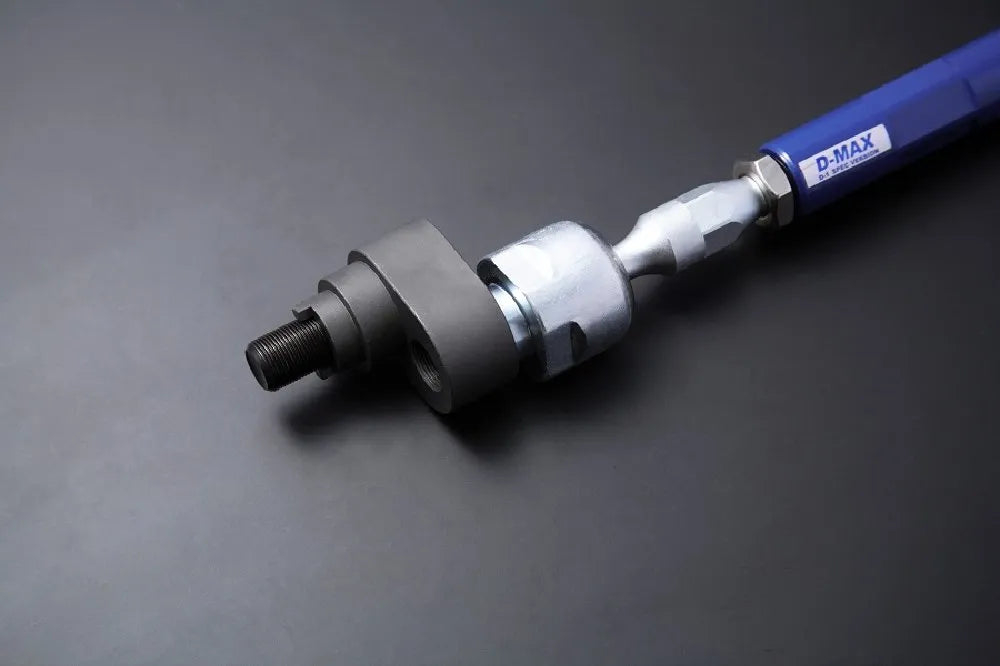

This product offsets the position of the tie rod 25mm towards the lower arm. By offsetting it forward, reverse joint is prevented and the amount of rack end pinion movement is set to the maximum. It was tested and developed on vehicles participating in the Formula Drift US Series and D1 GRAND PRIX. When combined with racing knuckles, it can be expected to have a tremendous effect*1. There are conditions for installation, such as short parts. Also, setting including alignment is required.
■Material
| Material | S45C |
| Offset Amount | 25mm |
■ Compatible models/vehicle types
| S14/S15 | Sylvia |

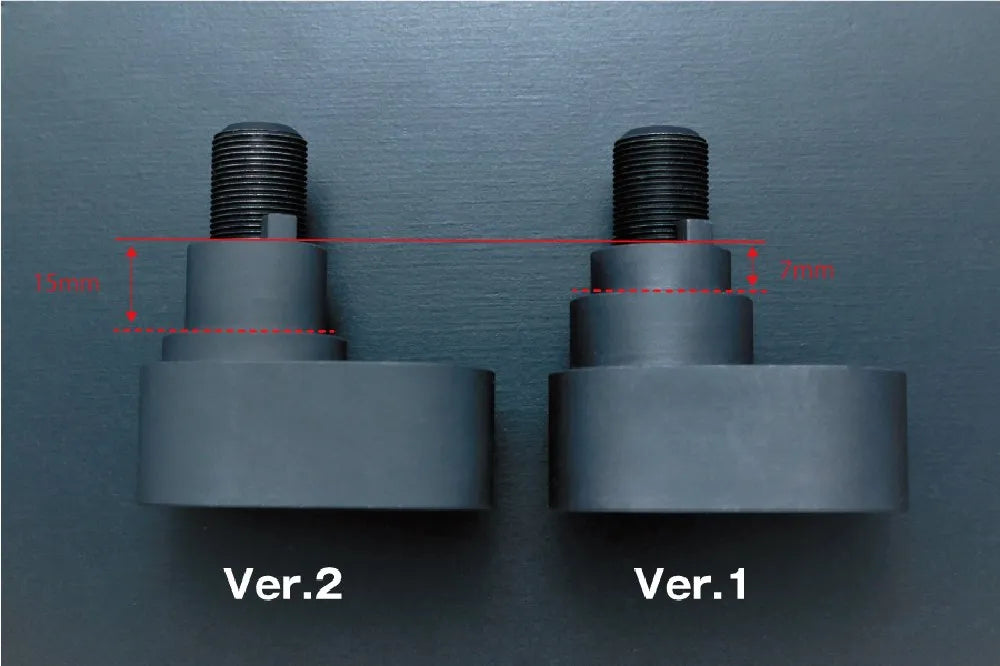

*For genuine racks, when installing the rings to increase the turning angle, the distance is 7mm on the driver's side and 14mm on the passenger's side, but for our racks, the distance is 9mm on the driver's side and 9mm on the passenger's side.
*When installing, please wrap the threads once with locktite or similar to prevent loosening before installing.
*1 We recommend installing this together with the D1SPEC Front Lower Arm & Tension Rod Set .
*Due to the structure of the product, the original boots cannot be used.
