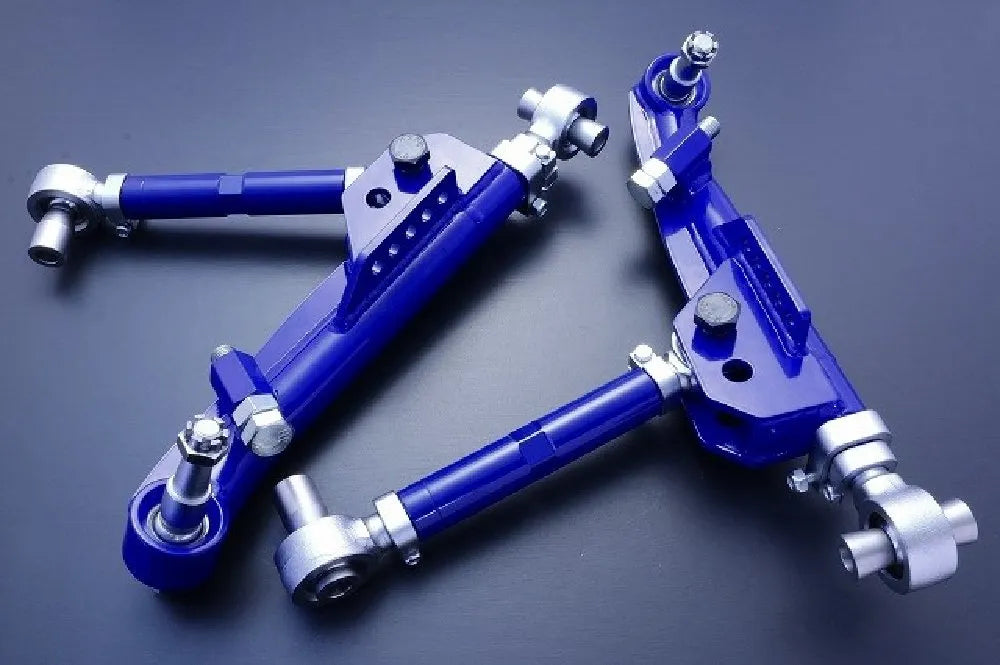

D-MAX D1SPEC Front lower arm & tension rod SET

The S13 series can be installed by modifying the tension rod section.

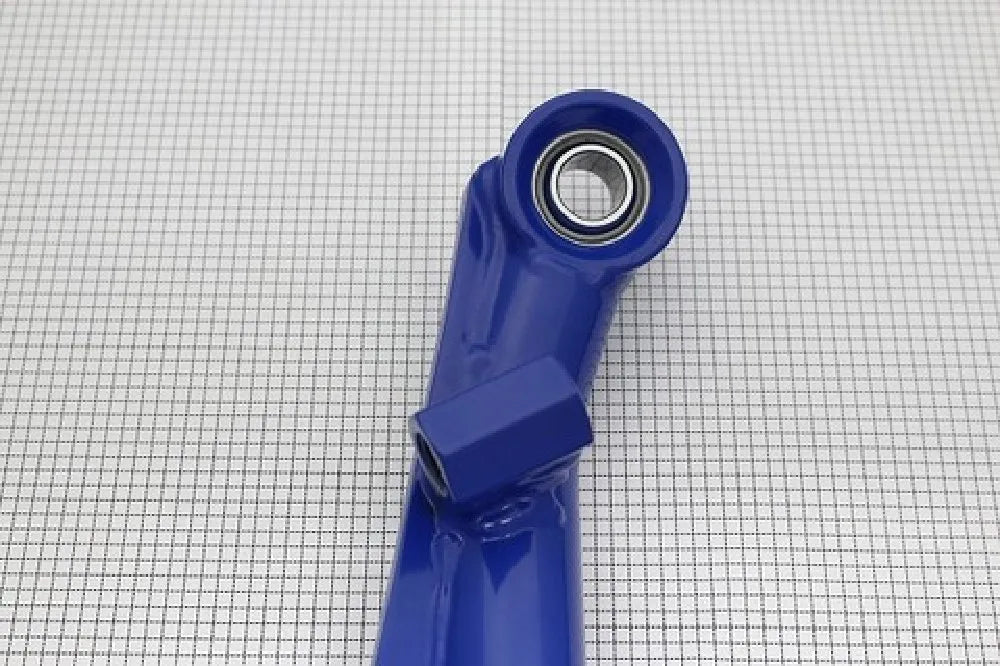

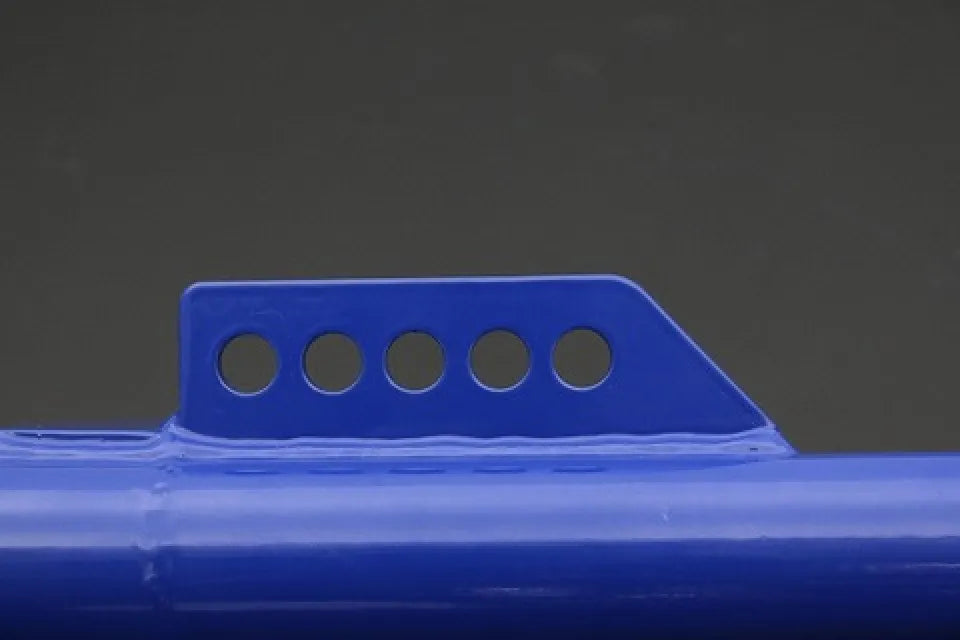

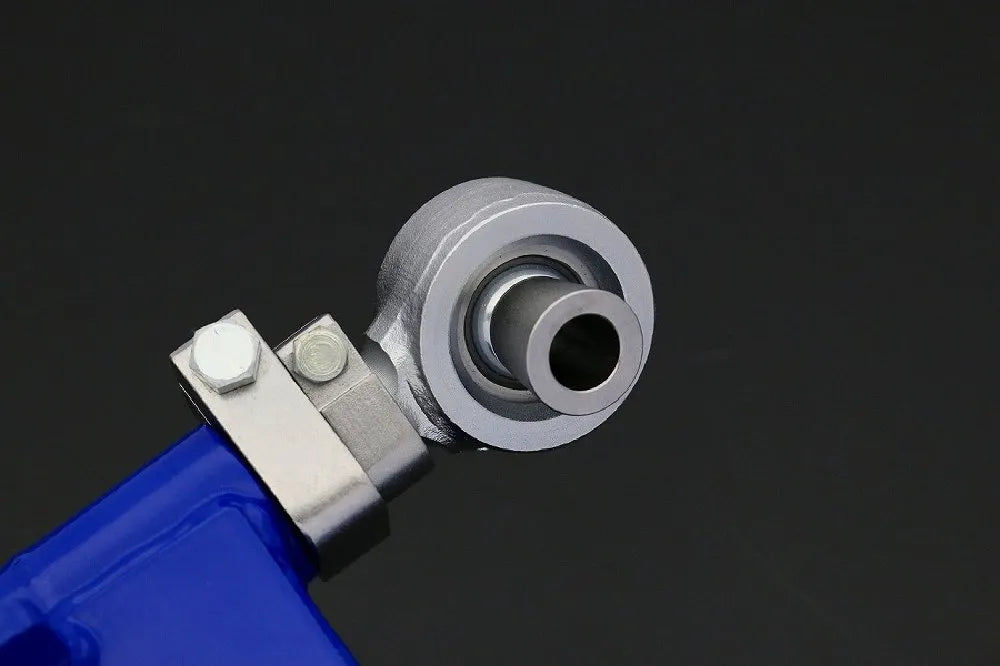

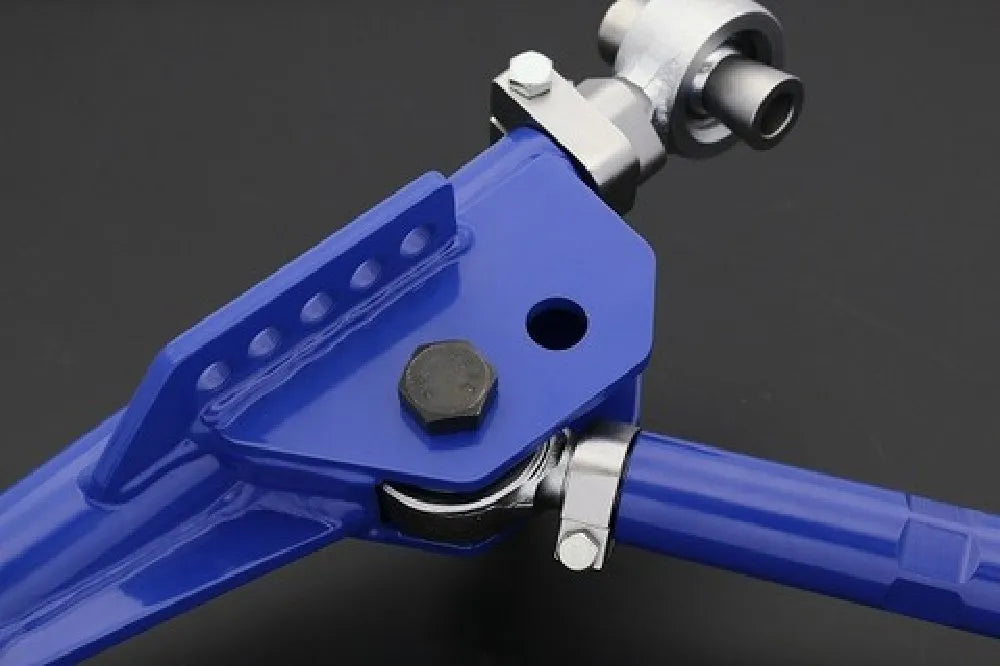

The minimum value of this adjustable front lower arm is 15mm longer than the genuine value. From there, it can be extended by 40mm. Compared to the genuine product, it can be extended up to 55mm. The biggest difference from other companies' extended lower arms is that the part that normally interferes with the tie rod end can be curved to allow it to escape to the lower center part. In addition, by setting two mounting points for the tension rod, it is possible to prevent interference in advance by changing the escape direction when the turning angle increases. Since it is an adjustable lower arm, it may be necessary to adjust the stabilizer. In that case, it can be handled by setting five mounting holes. A dedicated multi-stabilizer link can also be installed. In terms of strength, the curved part is the most worrisome, but by inserting a reinforcing plate, it has achieved strength that is incomparable to that of a normal lower arm. Up to now, various knuckles have been sold by other companies, but the stopper can be freely adjusted by making it an adjustable bolt so that it can be compatible with most of them. As for the bolts and nuts, it is designed to be compatible with either side. Of course, when installing our lower arm, you will need to make settings to avoid reverse joints, but we recommend the offset rack adapter in our sales lineup. As for the knuckles, installing them together with the racing knuckles that are available for pre-sale will give you a turning angle of over 70 degrees. (There will be some margin of error in the settings of other suspension parts as well.)

■Specifications / Lower arm part

*Comparison value for genuine lower arm (minimum +15mm from genuine lower arm)

■ Specifications / Tension rod part

■Accessories

■ Compatible Models

*The tension rod is too long, so the rod part of the tension rod needs to be modified
. *Replacement parts are available for this product. → It is listed in the replacement parts category

. This product is a part for competition only, so it is limited to use only on closed courses such as circuits or at exhibitions, and cannot be used on public roads. If it is installed and used on public roads, it may violate the Road Traffic Act and safety standards, and use on roads or places similar to public roads as specified by the Road Transport Vehicle Act and other laws and regulations is strictly prohibited. Violation of various laws and regulations will be subject to punishment by the supervisory authorities. When installing parts for competition only and using them on public roads, make sure that the vehicle meets the safety standards before using them, and change the registration of the vehicle (modified vehicle inspection) if necessary. Please contact the local Land Transport Bureau to check whether the product meets the safety standards. The purchaser shall bear all obligations, responsibilities, and management for any damages caused directly or indirectly by the use of the part. When purchasing this product, please understand that it is a part for competition use only, use it at your own risk, and make your purchase only if you agree not to hold the manufacturer responsible or seek compensation for damages under any circumstances.
