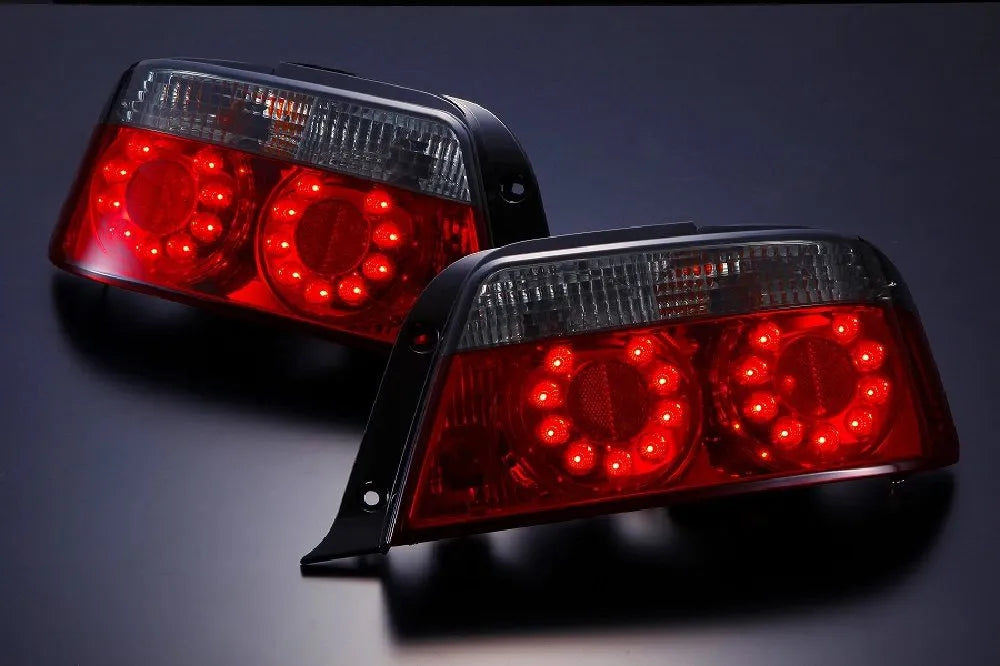

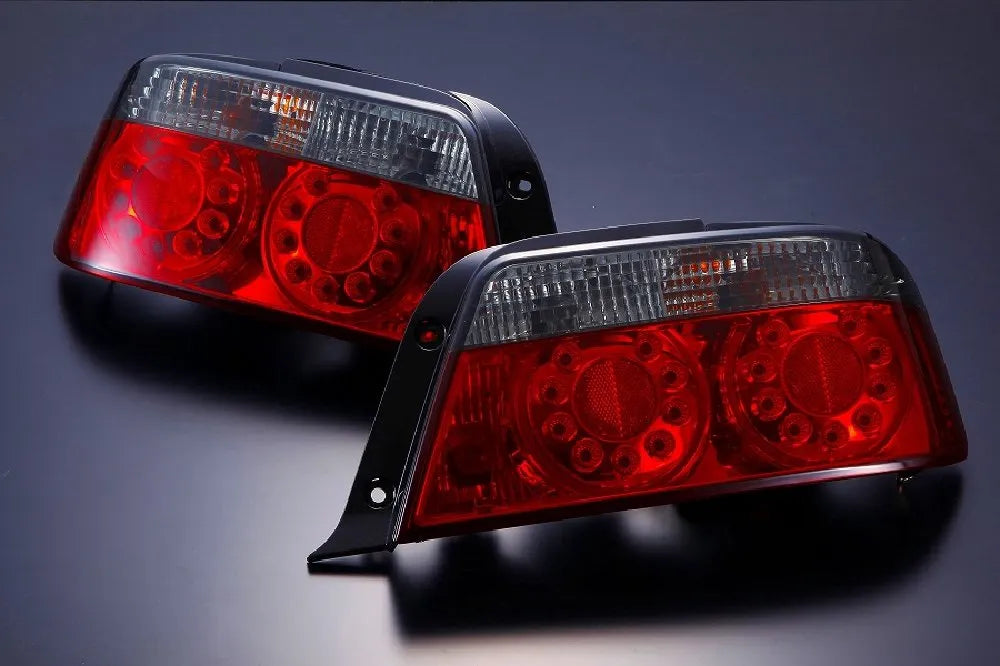

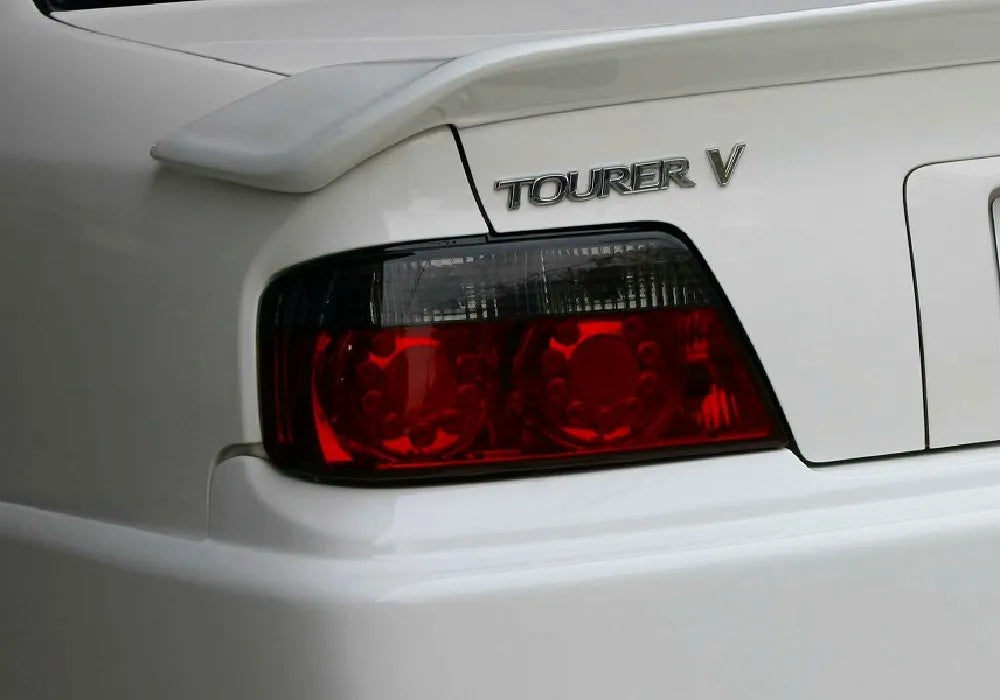

D-MAX 100 Series Chaser LED Crystal Tail (Smoke) SET

Sale price€311,95

■ Compatible vehicle models/models


Chaser early model GX10#/JZX10#
Not compatible Late model *Due to different coupler shape


■Material


Made of acrylic resin


*The lens part is easily scratched, so do not wipe it with a dry cloth.

■Specifications


design Crystal Smoke
Blinker section Bulb lighting type
Blinker bulb shape T20 single / Rating: 12V21W
Back section Bulb lighting type
Back sphere shape T20 single / Rating: 12V21W
Tail and stop section LED lighting type
Number of LEDs (tail section) 18 on each side / 36 in total


■ Installation


Compatible with genuine couplers.


*When replacing, please perform the replacement work based on the Toyota maintenance manual.
*For the safe operation of automobiles, the color and brightness of each light, such as taillights, are specified in detail by the Road Transport Vehicle Law safety standards.
 Never modify the light color or brightness.
*Most water leaks occur when the gasket between the body and the lamp is not installed correctly or the gasket is deteriorated.
*Please understand the role of the gasket (caulking) before installing.
*Before driving the car, be sure to check that all lights are working properly.
*Once the installation work is completed, be sure to check that all lights are working properly. Please store the removed genuine lamps carefully. *If
the lens becomes cloudy, the taillight is not sealed to ventilate the air inside. This is to release the heat generated from the lamp and keep
 the inside of the lamp in an optimal environment.
*Since the inside of this product is not sealed, if it rains for a long time or the humidity is high, the inside may condense and the lens may become cloudy, but this is not abnormal.
*The fog will disappear if you leave it for a while, but if the fog is bothersome, remove the tail lamp connector on a sunny day and leave it for a while.
*The gasket (caulking) between the body and the lamp is a very important part in preventing water leakage.
 If deterioration or damage is confirmed when removing it, be sure to replace it with a new one.
*When installing this product, there may be a gap of several mm between the body and this product, but this is due to the vehicle body and installation error, so it is not abnormal.

Shipping charges apply for each item.
Product Code: DML1101004T1 to DML1101004T1R
JAN code: 4571433801244
Set contents:
D-MAX 100 Series Chaser LED Crystal Tail (Smoke) SET
